Railway Bearing Assemblies: Supporting Reliable and Efficient Rail Transportation
Railway transportation depends on reliable mechanical components to maintain safe, stable and efficient operation. Among these components, railway bearing assemblies play an important role in supporting wheelsets, carrying heavy loads and allowing smooth rotation under demanding operating conditions.
For freight trains in particular, bearings are exposed to high radial loads, shock loads, vibration, temperature changes and long operating cycles. A properly designed bearing assembly can help reduce friction, improve wheelset rotation and contribute to the overall reliability of railway vehicles.
The Role of Bearings in Railway Wheelsets

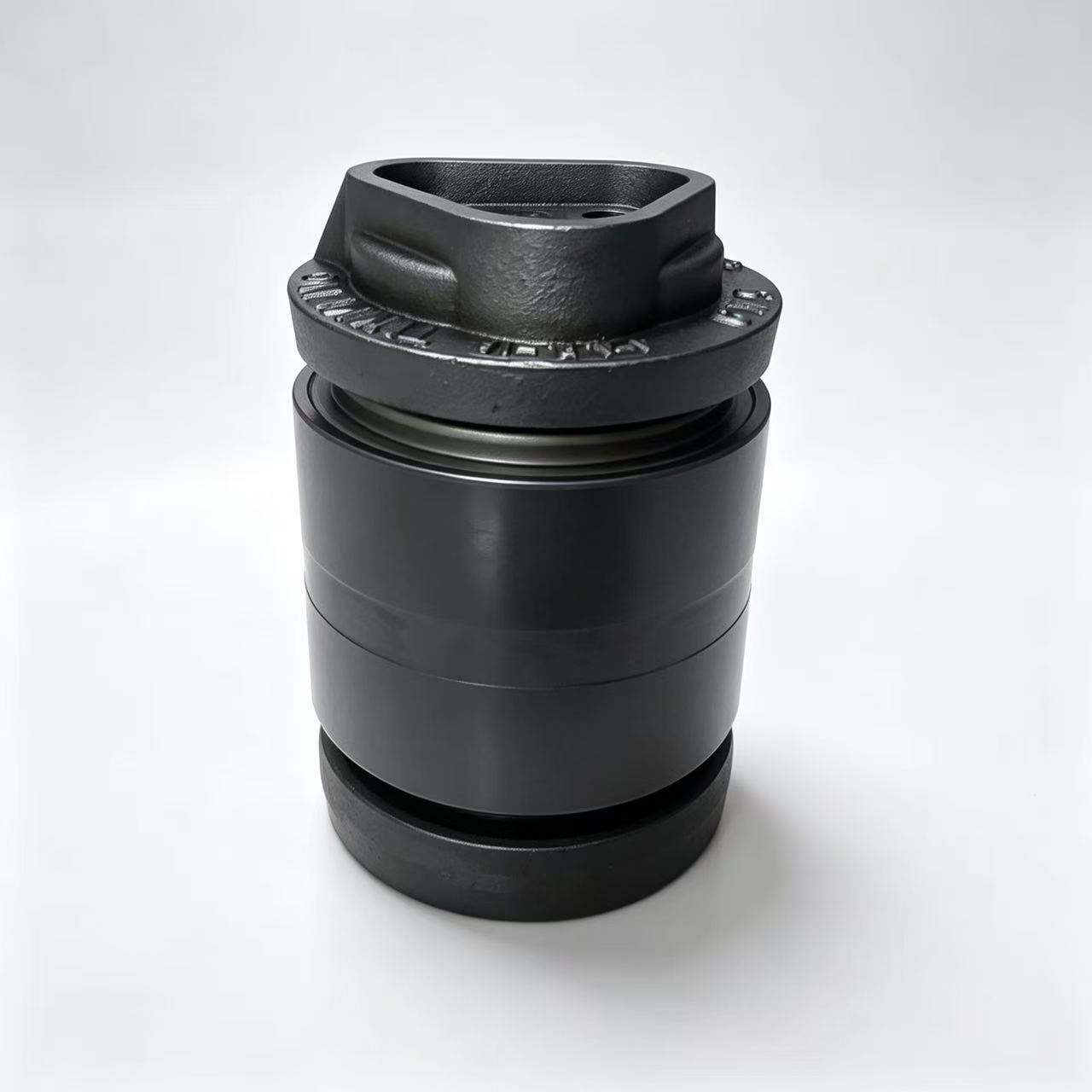

A railway bearing assembly is installed around the axle and works together with components such as the axle journal, bearing housing, seals and mounting system.
During operation, the bearing transfers loads between the rotating axle and the stationary housing while allowing controlled rotation. This requires the bearing to maintain stable contact between the rolling elements and raceways under continuously changing operating conditions.
For railway freight applications, common bearing solutions include tapered roller bearing assemblies, which are designed to accommodate both radial and axial loads.
Tapered Roller Bearings for Railway Applications
Tapered roller bearings are widely used in heavy-duty applications because their tapered geometry allows them to handle combined loads.
A typical railway tapered roller bearing assembly consists of:
Inner rings
Outer rings
Tapered rollers
Cages
Sealing components
Retaining or mounting components
Lubrication system
The complete assembly works as an integrated system rather than as an individual bearing component.
This design is particularly suitable for railway wheel-end applications where load capacity, durability and dimensional stability are important.
Why Railway Bearings Require High Reliability
Railway vehicles operate for long periods and may travel under severe environmental conditions. Bearing performance can therefore directly influence maintenance requirements and operating reliability.
Important performance factors include:
1. High Load Capacity
Freight wagons can carry substantial loads. Railway bearings must withstand high radial loads while maintaining stable rolling contact.
2. Resistance to Shock and Vibration
Railway tracks are subject to joints, curves, switches and changing track conditions. Bearing assemblies must tolerate vibration and impact loads during operation.
3. Long Service Life
Railway maintenance intervals are important for fleet operators. High-quality bearing components and appropriate lubrication can help extend service life and reduce unexpected maintenance.
4. Reliable Sealing
Effective sealing helps protect the internal bearing components from contaminants such as dust, moisture and other external particles.
5. Dimensional Accuracy
Accurate bearing dimensions and controlled internal geometry are essential for proper installation and stable wheelset operation.
Railway Bearing Assembly Structure

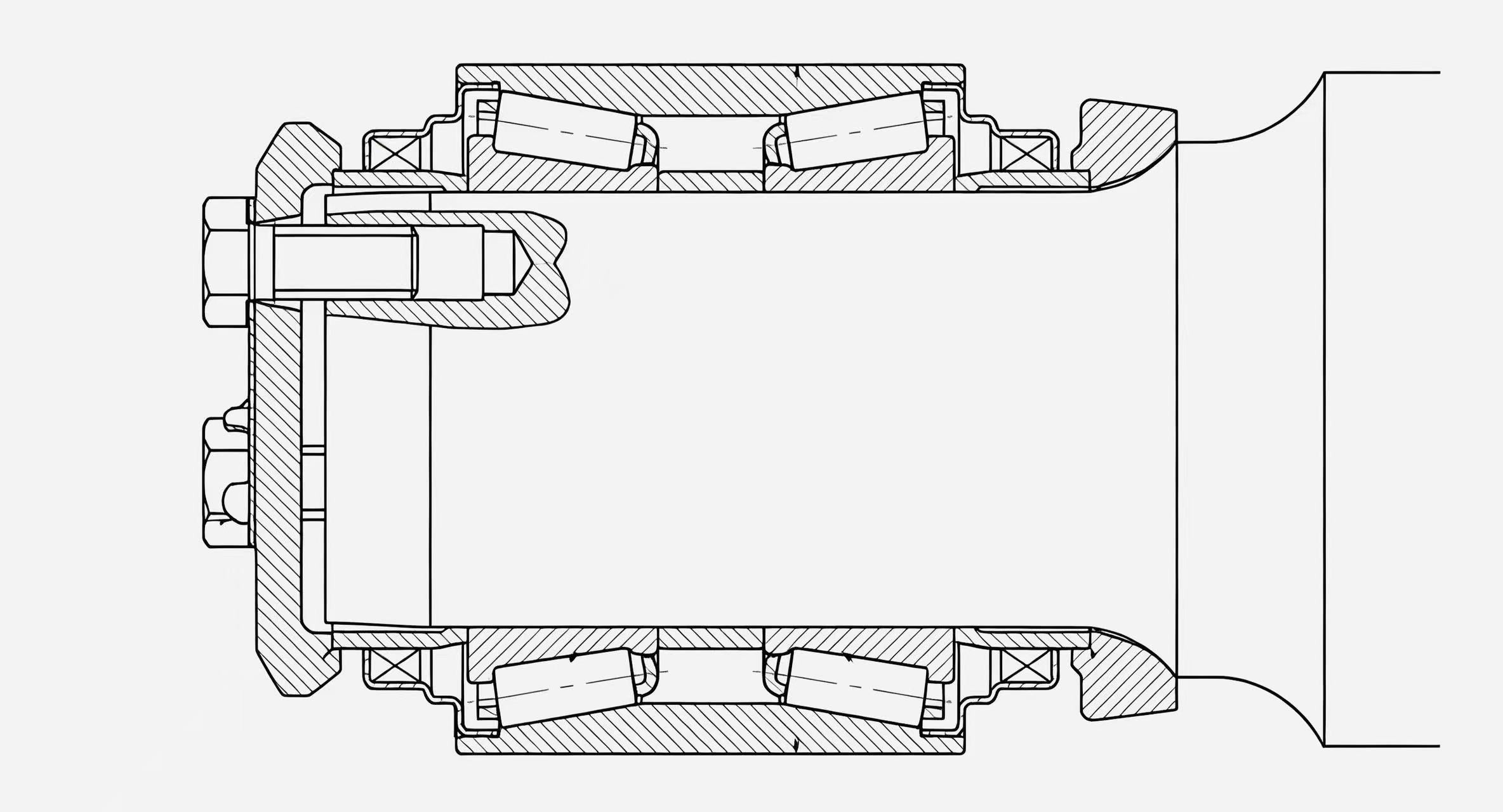

The cross-sectional design shown above illustrates how a railway bearing assembly integrates the bearing with the surrounding mounting components.
The rolling elements are positioned between the inner and outer raceways. When the axle rotates, the rollers move along the raceways, allowing rotation while carrying the applied load.
The surrounding housing and sealing structure provides mechanical protection and helps maintain the required operating environment for the bearing.
This integrated structure is important because railway bearing performance depends not only on the bearing itself, but also on installation, lubrication, sealing, axle condition and housing design.
Applications of Railway Bearings
Railway bearing assemblies can be used in various railway vehicles and equipment, including:
Freight wagons
Railway cargo cars
Passenger railway vehicles
Locomotives
Wheelset assemblies
Bogies and truck assemblies
Heavy-duty railway equipment
Different railway vehicles require different bearing designs according to axle size, load rating, operating speed, installation method and maintenance requirements.
Quality Control Is Critical
For railway bearing manufacturers and suppliers, quality control should cover the entire production process.
Important inspection areas include:
Material → Heat Treatment → Grinding → Superfinishing → Assembly → Dimensional Inspection → Load/Performance Testing → Final Inspection
Particularly for railway applications, raceway geometry, roller accuracy, hardness, internal clearance, surface finish and assembly consistency need to be carefully controlled.
Reliable production processes help ensure that each bearing assembly meets the required dimensional and performance specifications.
Railway Bearings for Global Markets
With the continued development of rail freight transportation, the demand for reliable railway components remains important in many international markets.
Railway bearing suppliers need to provide not only individual bearing components, but also suitable solutions for different wheelset designs and operating environments.
For distributors, railway maintenance companies and industrial bearing buyers, key considerations when selecting a supplier include:
Bearing model and interchange information
Dimensions and technical specifications
Material and heat treatment
Manufacturing capability
Quality inspection
Packaging
Delivery capability
Technical support
Export experience
Choosing the correct bearing specification is essential because railway bearing assemblies are safety-critical components.
Conclusion
Railway bearing assemblies are an essential part of modern rail transportation. From heavy-duty freight wagons to locomotives and other railway vehicles, bearings provide the rolling interface required for reliable wheelset operation.
With increasing requirements for freight capacity, operating efficiency and maintenance reliability, high-quality railway bearings will continue to play an important role in railway transportation.
Boyuan Bearing focuses on bearing manufacturing and supply, including railway bearings, tapered roller bearings and cylindrical roller bearings, providing bearing solutions for international customers and distributors.
