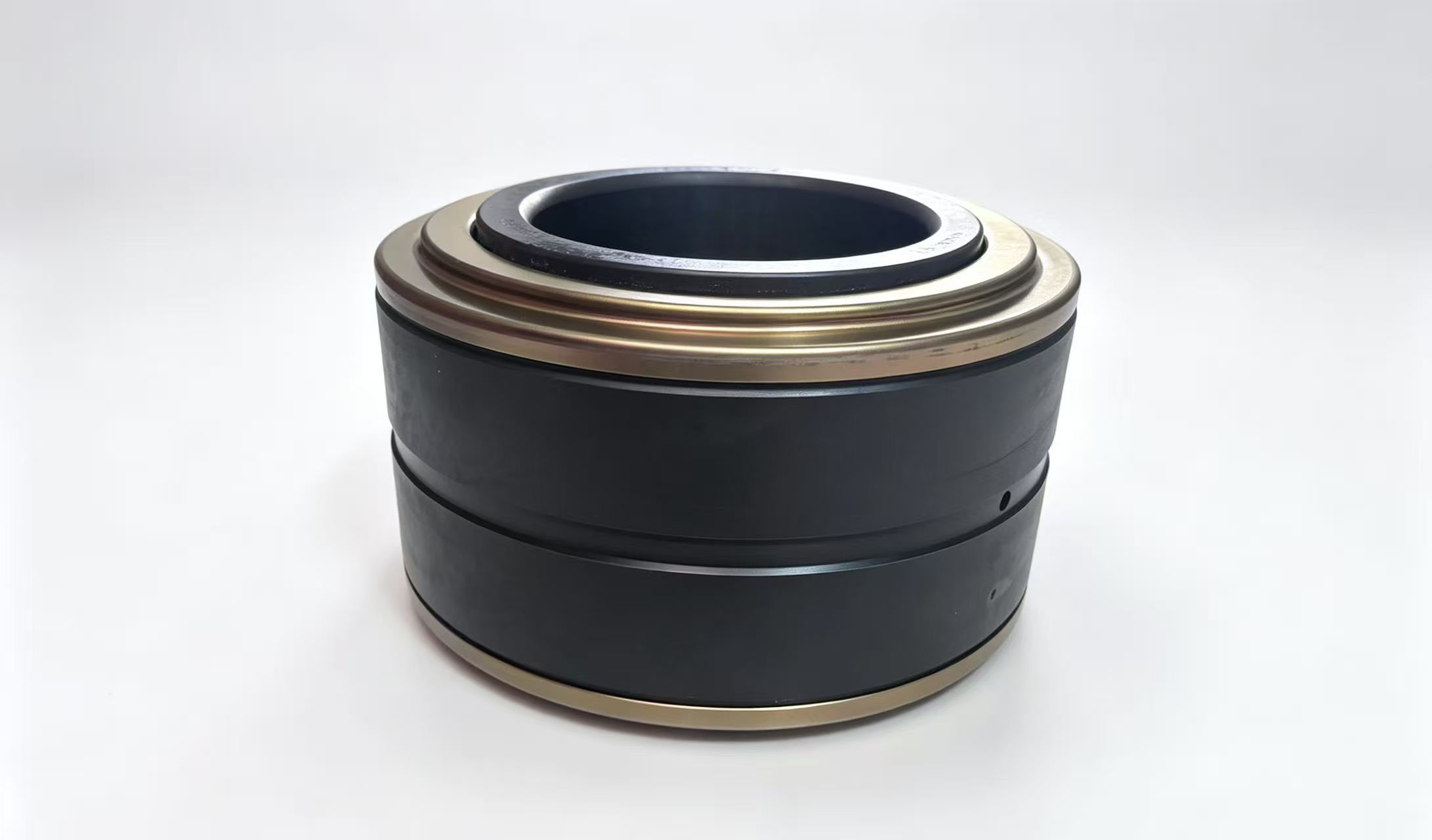

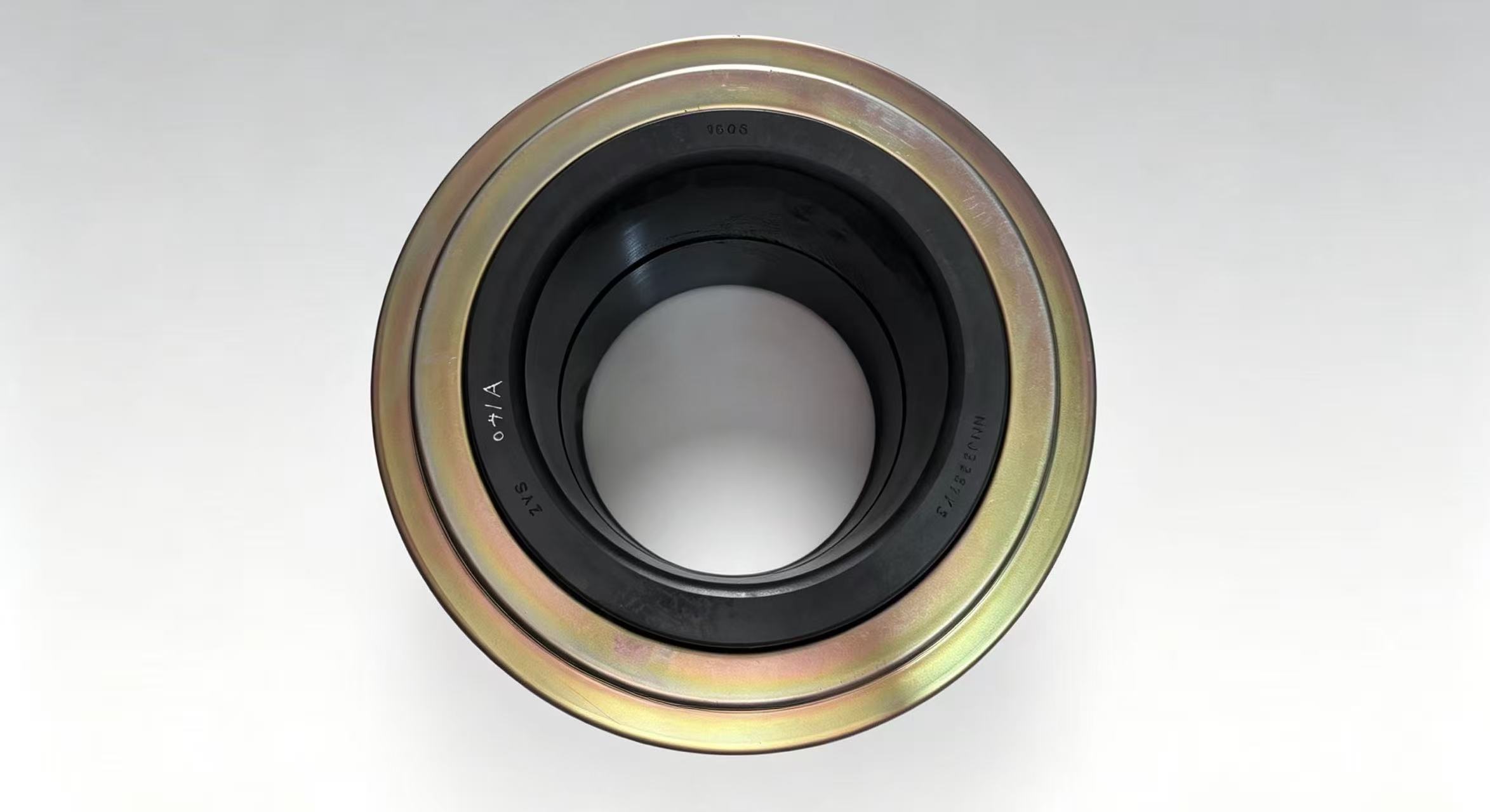

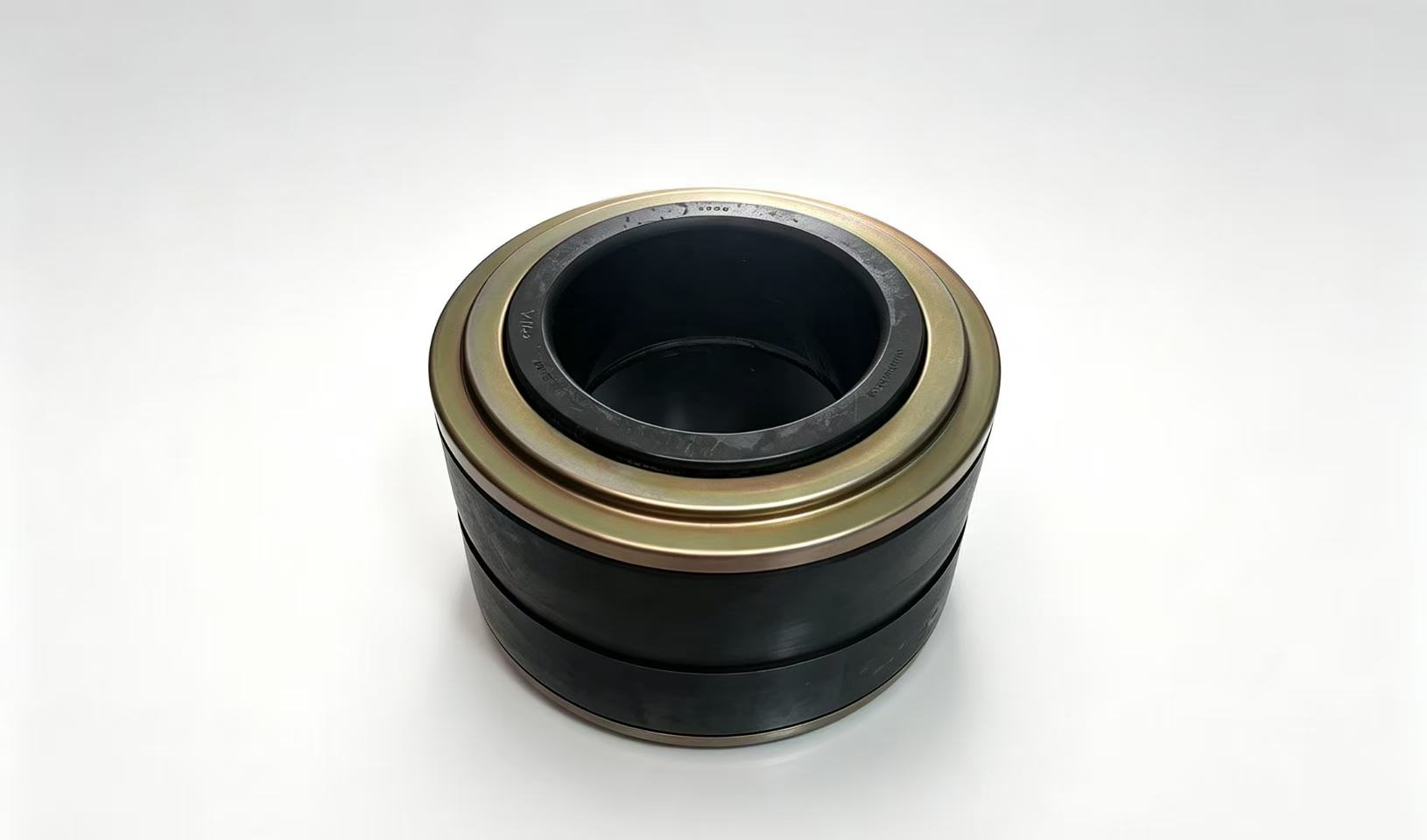

NNJ5232 Railway Cylindrical Roller Bearings
NNJ5232 / NNJ5232X3 Cylindrical Roller Bearing
Basic Dimensions (mm)
Bore Diameter (d): 160 mm
Outer Diameter (D): 280 mm
Width (B): 180 mm
Weight: Approx 58 kg
Load Ratings (Reference Data)
Basic Dynamic Load Rating (Cr): 1280 kN
Basic Static Load Rating (Cor): 1760 kN
*Load data for reference only, subject to factory test report
Product Introduction
NNJ5232X3 is a heavy-duty double-row cylindrical roller bearing specially designed for railway freight wagon axle boxes. It adopts a separable inner and outer ring structure, equipped with high-precision machined brass cage and premium chrome bearing steel.
This bearing features extremely high radial load capacity, excellent structural rigidity and superior shock resistance. The optimized internal structure perfectly adapts to heavy alternating loads, frequent start-stop operation and long-distance continuous running. It mainly undertakes radial loads and allows limited axial displacement, ensuring high operational stability and long service life under harsh railway working conditions.
Application
Widely applied in railway freight wagon axle box assemblies and heavy-duty rail vehicle wheel set support parts, dedicated for heavy-load railway freight transport scenarios.
