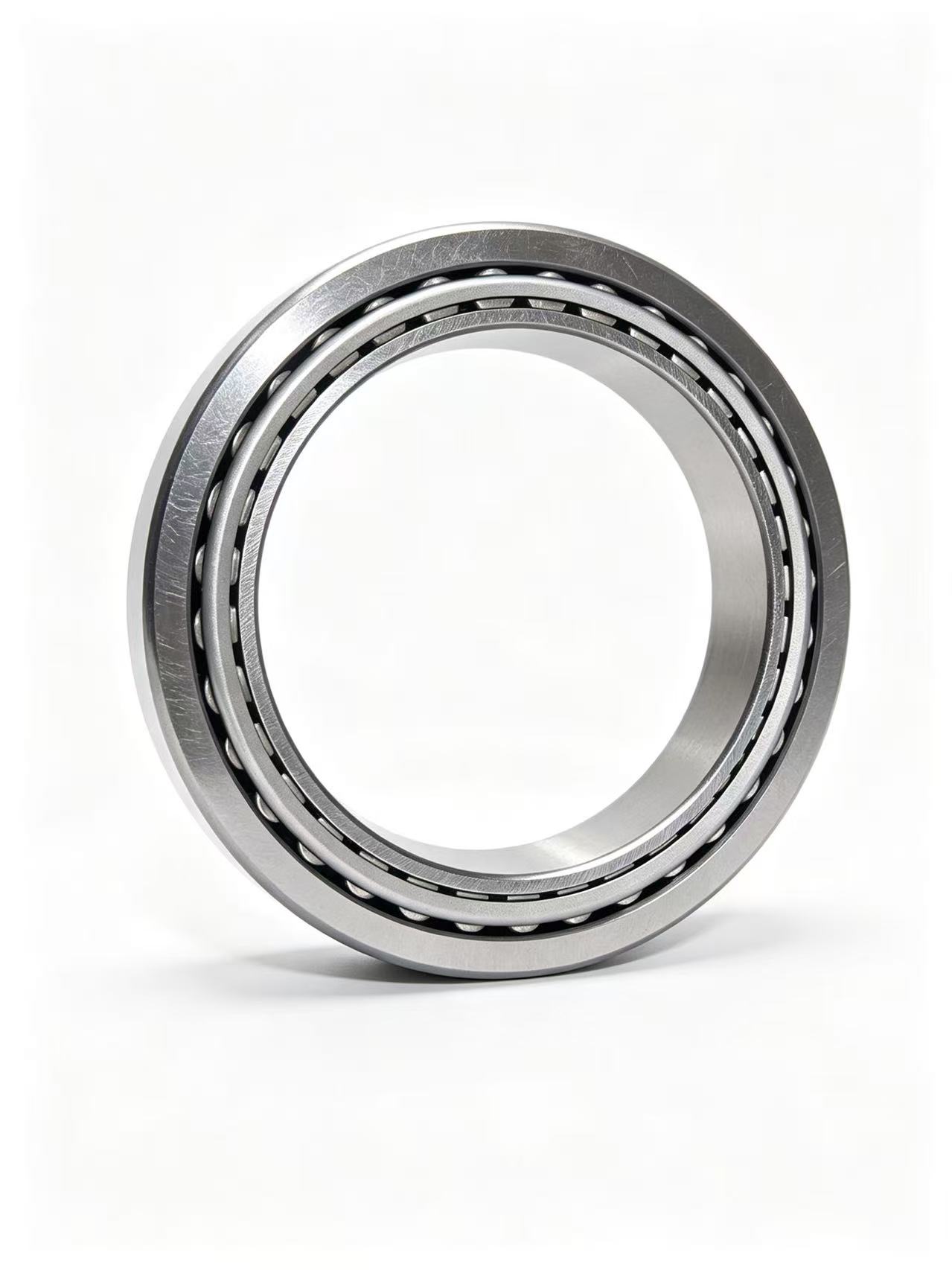

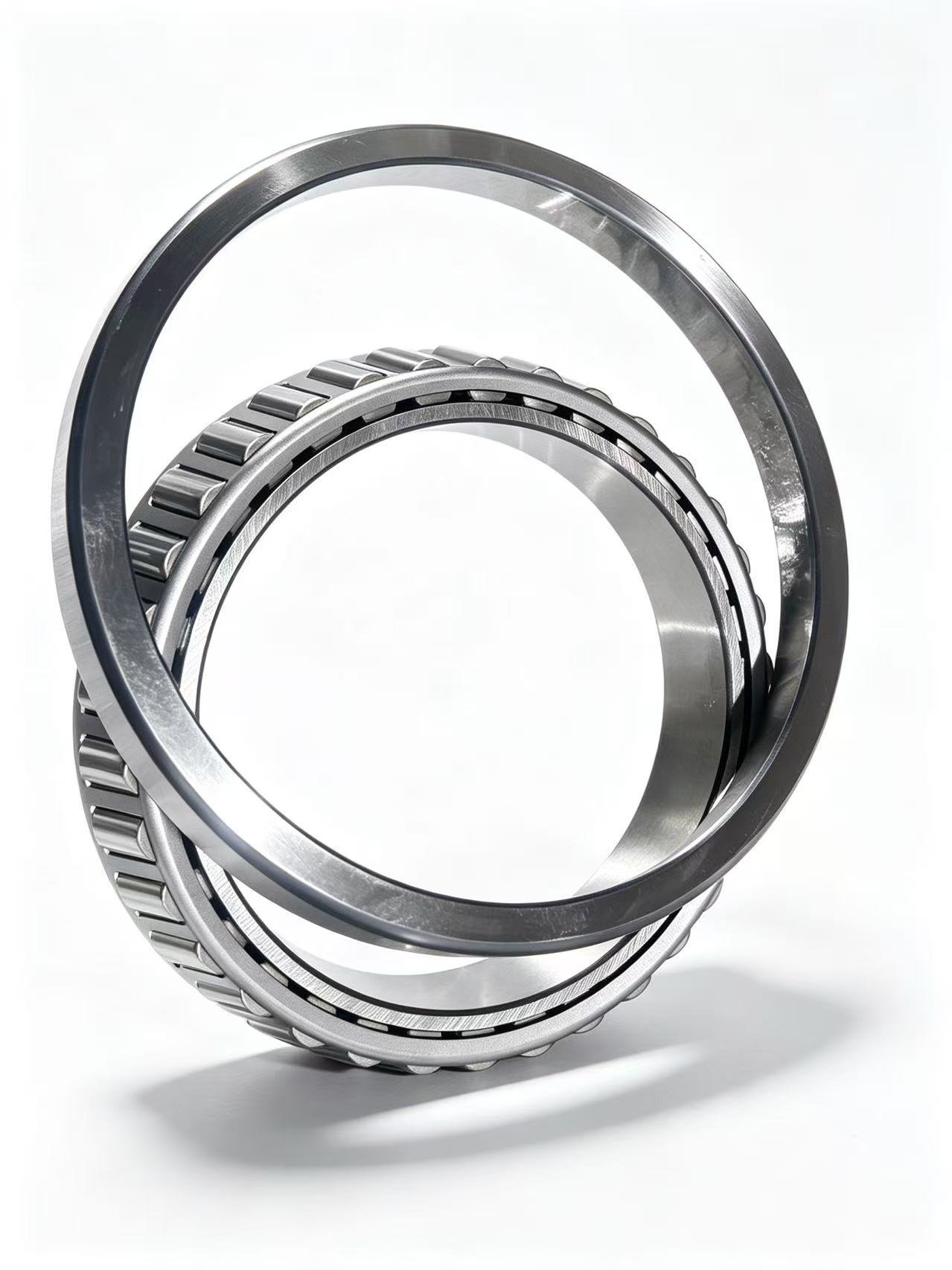

BT1-1125 Railway Tapered Roller Bearing

Product Overview

BT1-1125 is a tapered roller bearing designation listed in the supplied SKF technical reference for railway-related suspension tube bearing applications. The listed principal dimensions are 275 mm bore, 360 mm outside diameter and 50 mm total width. The bearing has a dynamic load rating of 512 kN and a static load rating of 1120 kN. Its limiting speed in the supplied table is 1700 r/min. Because railway bearing configurations can include application-specific suffixes and execution features, the complete designation should be confirmed before ordering.

Technical Specifications

Parameter	Specification
Designation	BT1-1125
Bearing type	Tapered Roller Bearing
Bore diameter d	275 mm
Outside diameter D	360 mm
Total width T	50 mm
Inner ring width B	49 mm
Outer ring width C	40 mm
Dynamic load rating C	512 kN
Static load rating C₀	1120 kN
Limiting speed	1700 r/min
Mass	12.77 kg

Railway Application

The BT1-1125 bearing is suitable for consideration in railway and heavy-duty applications where the specified tapered roller bearing configuration is required. Selection should consider radial and axial loads, shaft and housing dimensions, speed, lubrication, mounting arrangement and operating temperature. For railway spare-part replacement, buyers should match the complete bearing designation and drawing rather than relying only on d and D.

Related Bearing Keywords

BT1-1125 bearing, BT1-1125 railway bearing, BT1-1125 tapered roller bearing, BT1-1125 railway tapered roller bearing, BT1-1125 bearing dimensions, railway suspension bearing, railway tapered bearing, heavy duty tapered roller bearing

Bearing Supplier

Linqing Boyuan Bearing Co., Ltd. supplies tapered roller bearings, railway bearings and cylindrical roller bearings for international distributors, bearing traders and industrial customers. For a quotation for BT1-1125, provide the complete designation, quantity, original/OEM requirement, packaging requirement and destination country.
