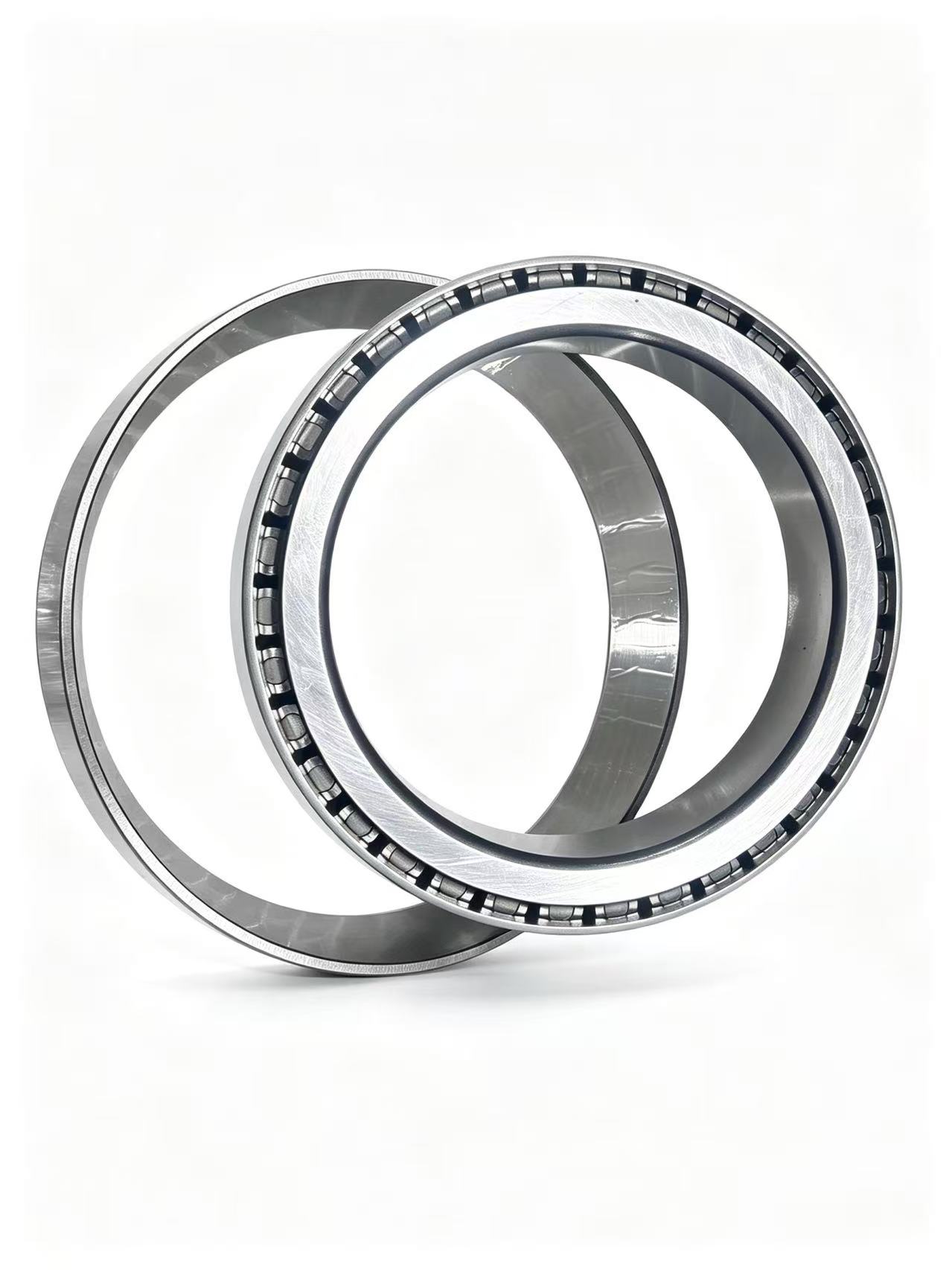

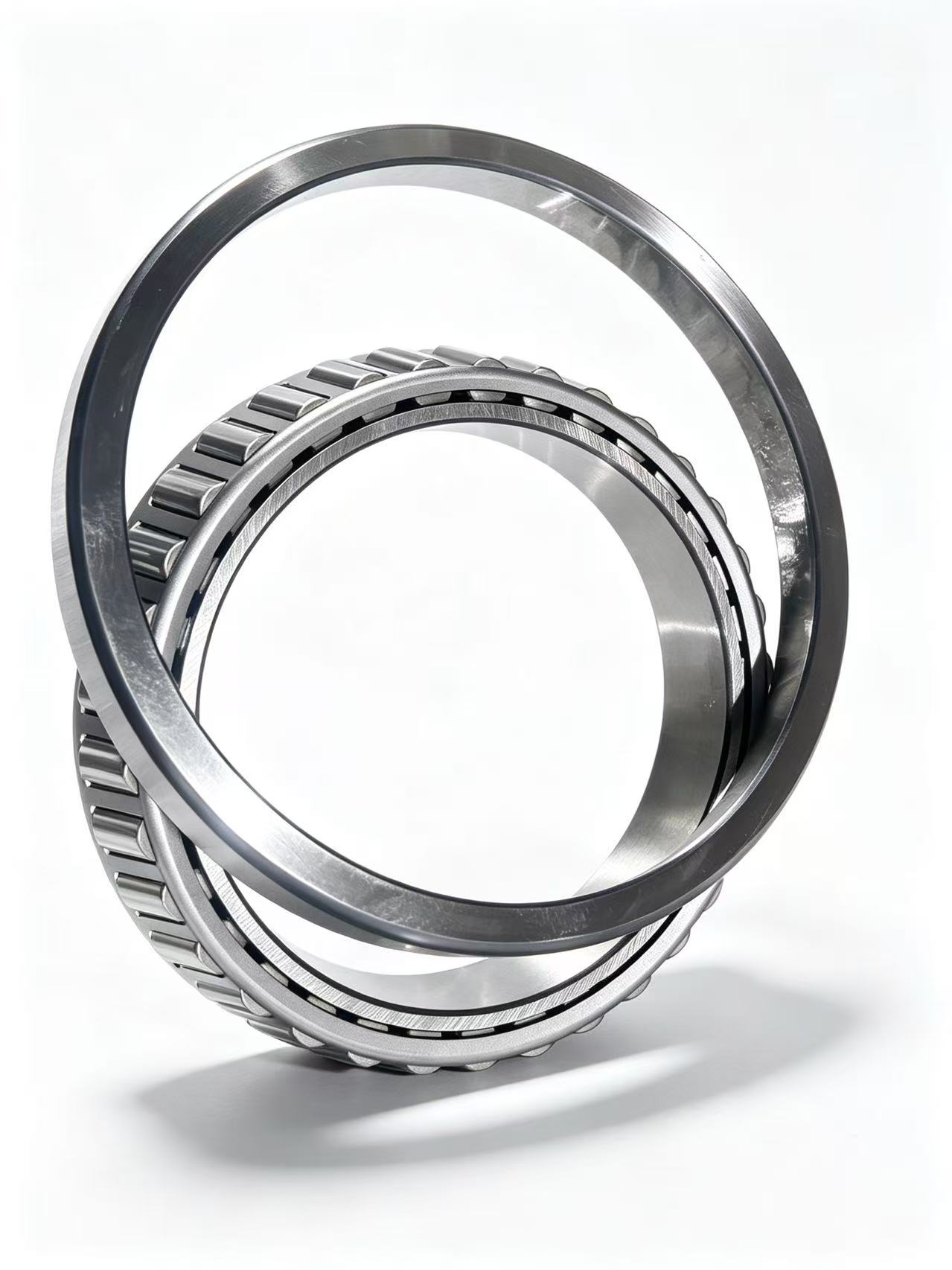

BT1-2111 Railway Tapered Roller Bearing

BT1-2111 is a tapered roller bearing designation used in demanding bearing applications where controlled radial and axial load carrying capability is required. The supplied technical table lists a 198.298 mm bore, 282.575 mm outside diameter and 49.212 mm total bearing width. For purchasing and replacement work, the complete designation should be confirmed because suffixes and special execution codes can define application, material, lubrication or performance requirements. Boyuan Bearing supplies tapered roller bearings for international distributors, bearing traders and industrial customers.

Technical Specifications

Parameter	Value
Designation	BT1-2111
Bearing type	Tapered Roller Bearing
Bore d	198.298 mm
Outside diameter D	282.575 mm
Total width T	49.212 mm
Inner ring width B	49.212 mm
Outer ring width C	36.512 mm
Dynamic load rating C	330 kN
Static load rating C0	695 kN
Limiting speed	2200 r/min
Mass	9.67 kg

Railway and Industrial Applications

The BT1-2111 bearing can be considered for railway and heavy-duty bearing applications where a tapered roller bearing is specified. Typical selection factors include shaft and housing dimensions, radial and axial loading, rotational speed, mounting arrangement, lubrication and operating temperature. For railway spare parts, buyers should compare the complete designation and dimensional drawing rather than selecting by bore and outside diameter alone.

Bearing Supply

Boyuan Bearing can quote BT1-2111 and related tapered roller bearing models for export orders. Please send the required quantity, complete designation, original/OEM requirement, packaging requirement and destination country when requesting a quotation.
