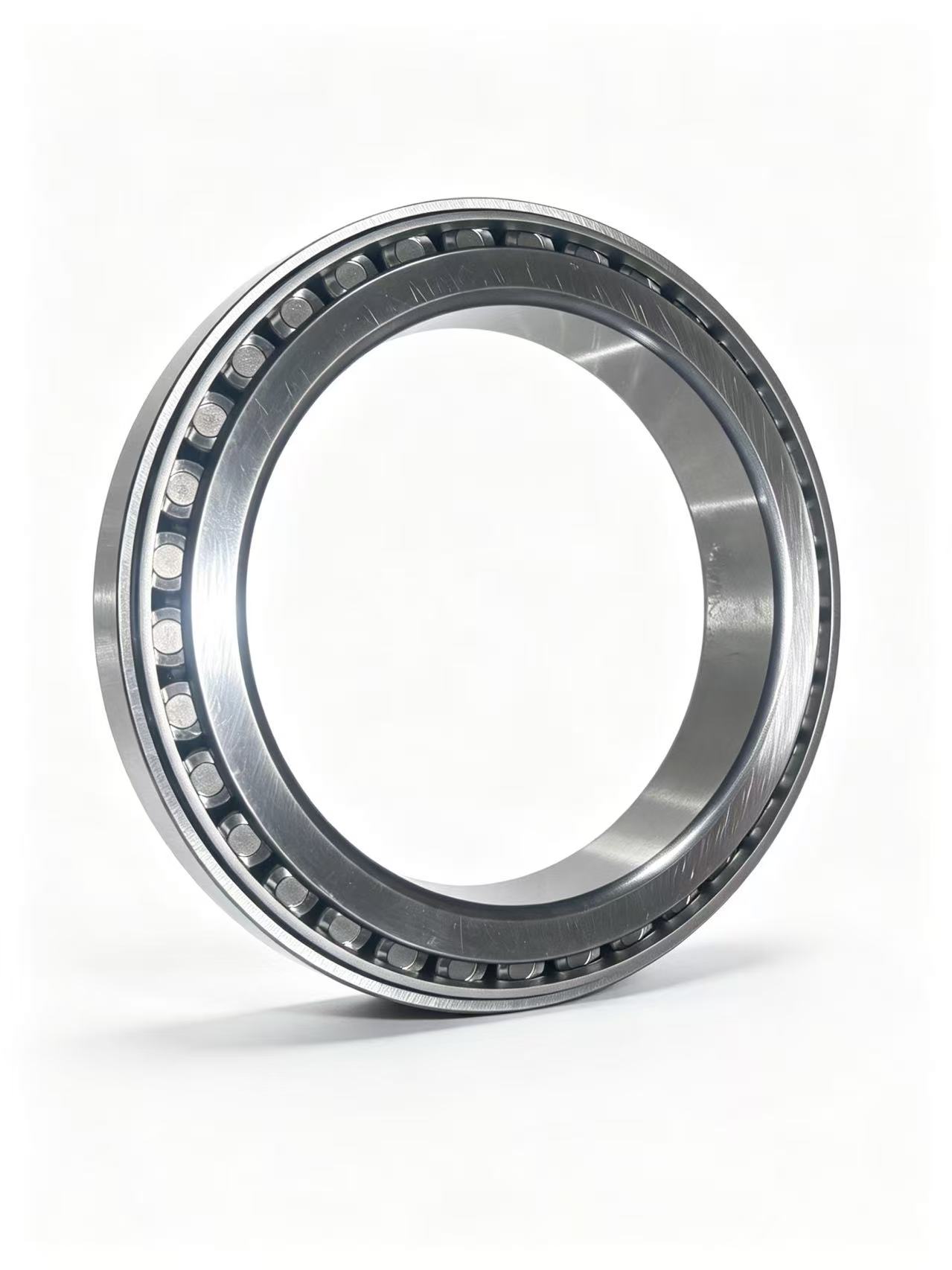

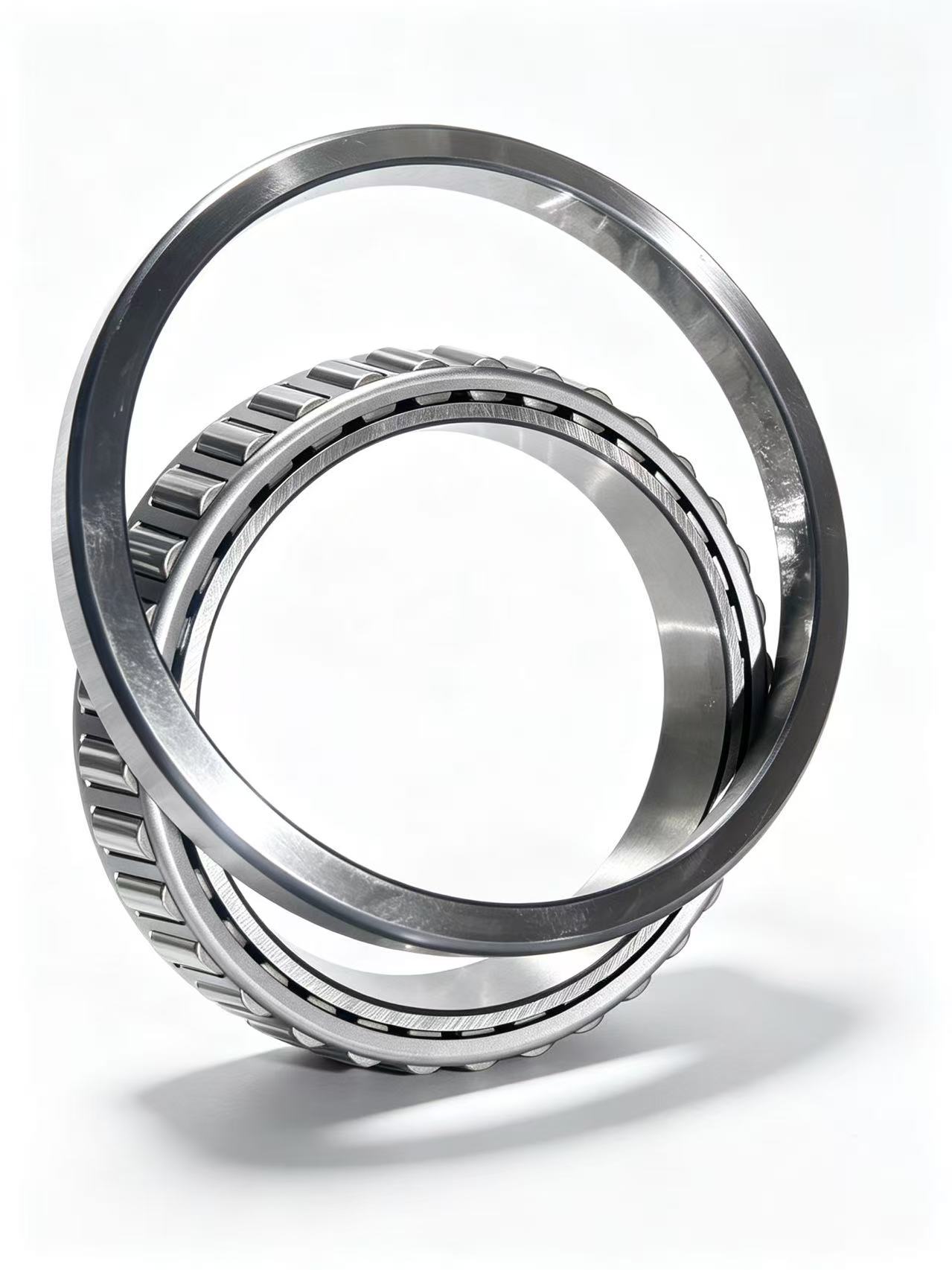

LM742747/710/VE679 Railway Tapered Roller Bearing

Product Overview

LM 742747/710/VE679 is a tapered roller bearing designation listed in the supplied SKF technical reference for railway-related suspension tube bearing applications. The listed principal dimensions are 216.408 mm bore, 285.75 mm outside diameter and 46.038 mm total width. The bearing has a dynamic load rating of 380 kN and a static load rating of 850 kN. Its limiting speed in the supplied table is 2200 r/min. Because railway bearing configurations can include application-specific suffixes and execution features, the complete designation should be confirmed before ordering.

Technical Specifications

Railway Application

The LM 742747/710/VE679 bearing is suitable for consideration in railway and heavy-duty applications where the specified tapered roller bearing configuration is required. Selection should consider radial and axial loads, shaft and housing dimensions, speed, lubrication, mounting arrangement and operating temperature. For railway spare-part replacement, buyers should match the complete bearing designation and drawing rather than relying only on d and D.

Related Bearing Keywords

LM 742747/710/VE679 bearing, LM 742747/710/VE679 railway bearing, LM 742747/710/VE679 tapered roller bearing, LM 742747/710/VE679 railway tapered roller bearing, LM 742747/710/VE679 bearing dimensions, railway suspension bearing, railway tapered bearing, heavy duty tapered roller bearing

Bearing Supplier

Linqing Boyuan Bearing Co., Ltd. supplies tapered roller bearings, railway bearings and cylindrical roller bearings for international distributors, bearing traders and industrial customers. For a quotation for LM 742747/710/VE679, provide the complete designation, quantity, original/OEM requirement, packaging requirement and destination country.
