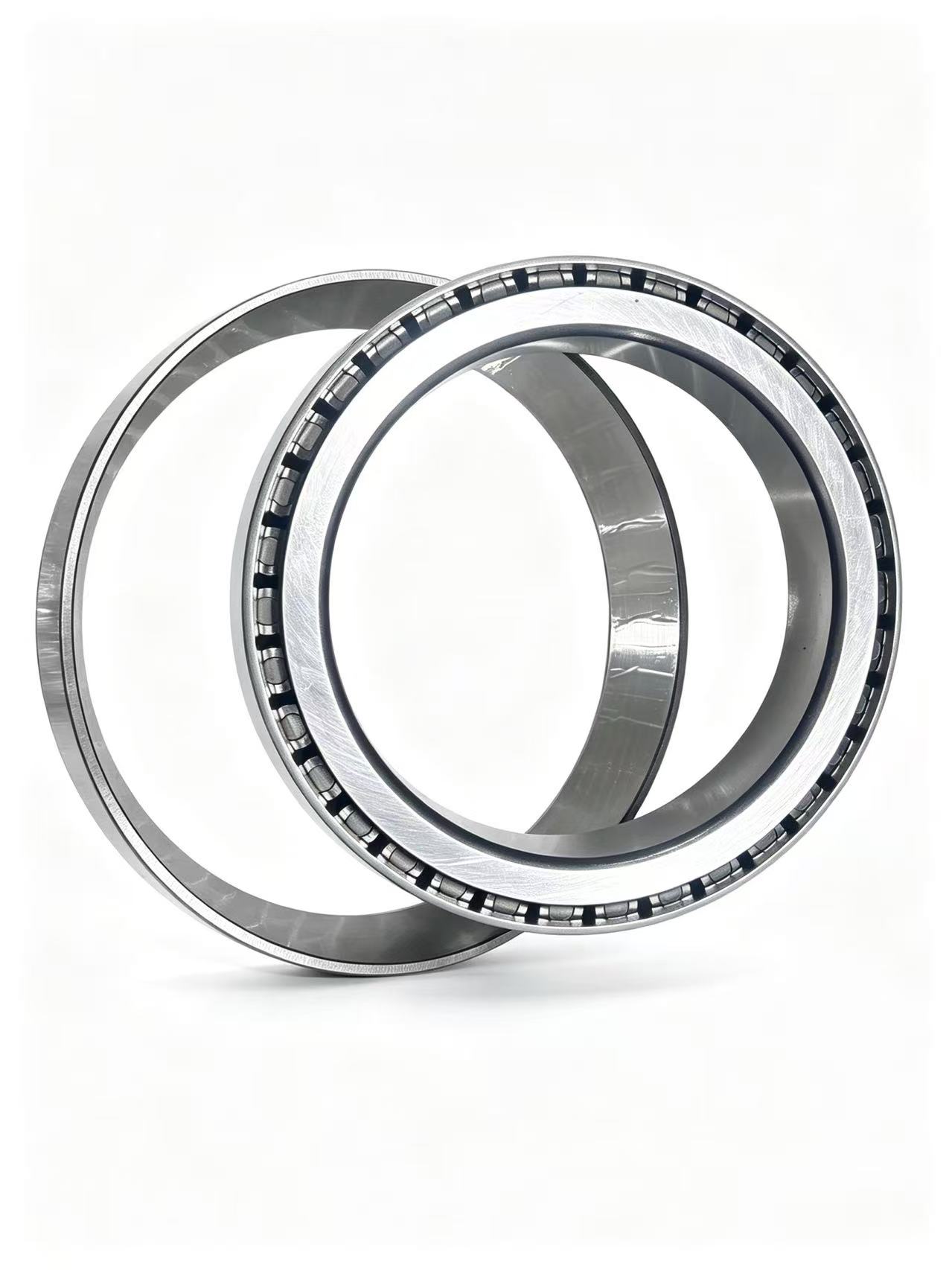

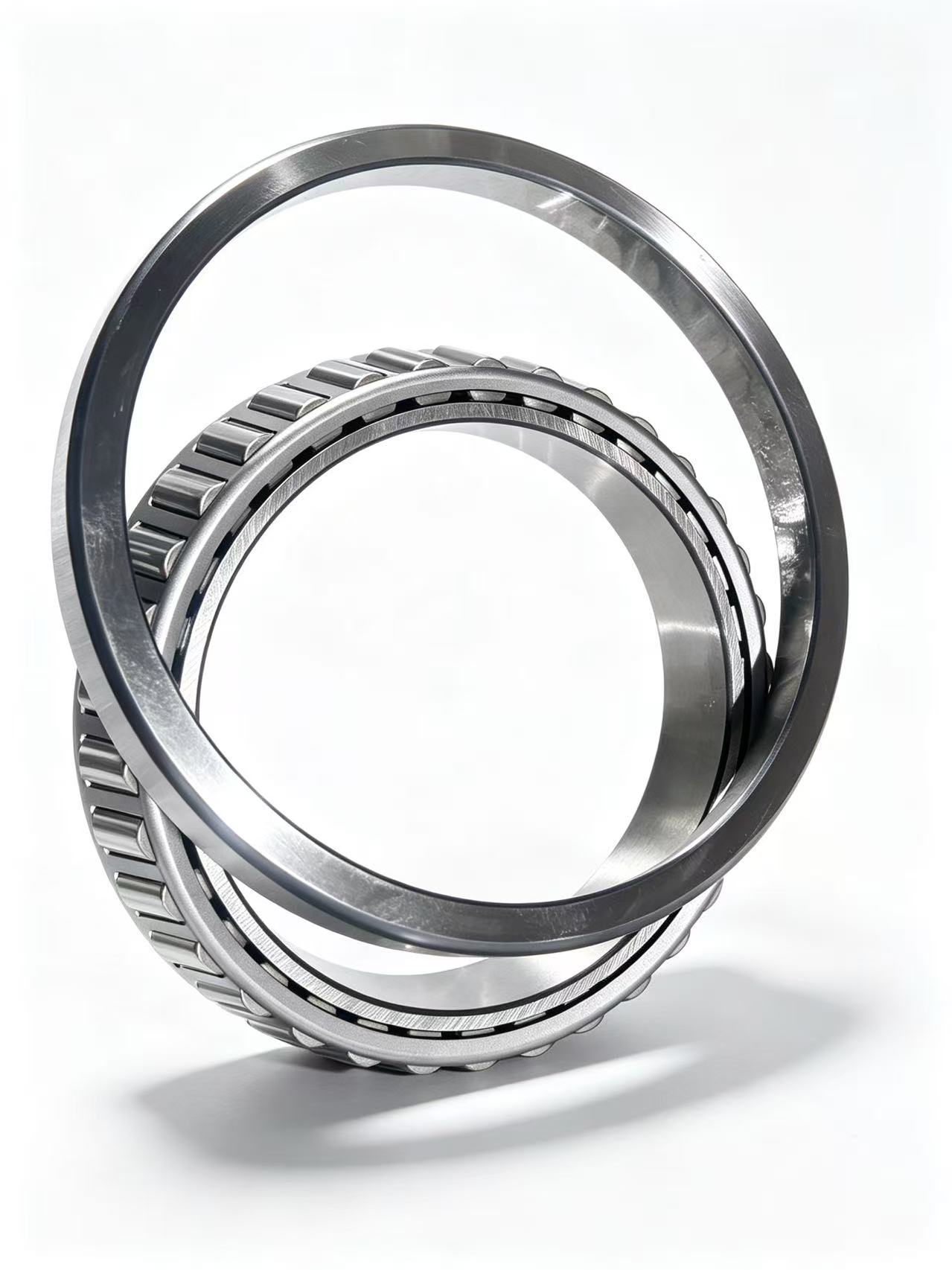

M349547/510/VG237 Railway Tapered Roller Bearing
Product Overview
M 349547/510/VG237 is a tapered roller bearing designation listed in the supplied SKF technical reference for railway-related suspension tube bearing applications. The listed principal dimensions are 255.6 mm bore, 342.9 mm outside diameter and 57.15 mm total width. The bearing has a dynamic load rating of 660 kN and a static load rating of 1400 kN. Its limiting speed in the supplied table is 1800 r/min. Because railway bearing configurations can include application-specific suffixes and execution features, the complete designation should be confirmed before ordering.
Technical Specifications
Parameter | Specification |
Designation | M 349547/510/VG237 |
Bearing type | Tapered Roller Bearing |
Bore diameter d | 255.6 mm |
Outside diameter D | 342.9 mm |
Total width T | 57.15 mm |
Inner ring width B | 63.5 mm |
Outer ring width C | 44.45 mm |
Dynamic load rating C | 660 kN |
Static load rating C₀ | 1400 kN |
Limiting speed | 1800 r/min |
Mass | 14.75 kg |
Railway Application
The M 349547/510/VG237 bearing is suitable for consideration in railway and heavy-duty applications where the specified tapered roller bearing configuration is required. Selection should consider radial and axial loads, shaft and housing dimensions, speed, lubrication, mounting arrangement and operating temperature. For railway spare-part replacement, buyers should match the complete bearing designation and drawing rather than relying only on d and D.
Related Bearing Keywords
M 349547/510/VG237 bearing, M 349547/510/VG237 railway bearing, M 349547/510/VG237 tapered roller bearing, M 349547/510/VG237 railway tapered roller bearing, M 349547/510/VG237 bearing dimensions, railway suspension bearing, railway tapered bearing, heavy duty tapered roller bearing
Bearing Supplier
Linqing Boyuan Bearing Co., Ltd. supplies tapered roller bearings, railway bearings and cylindrical roller bearings for international distributors, bearing traders and industrial customers. For a quotation for M 349547/510/VG237, provide the complete designation, quantity, original/OEM requirement, packaging requirement and destination country.
