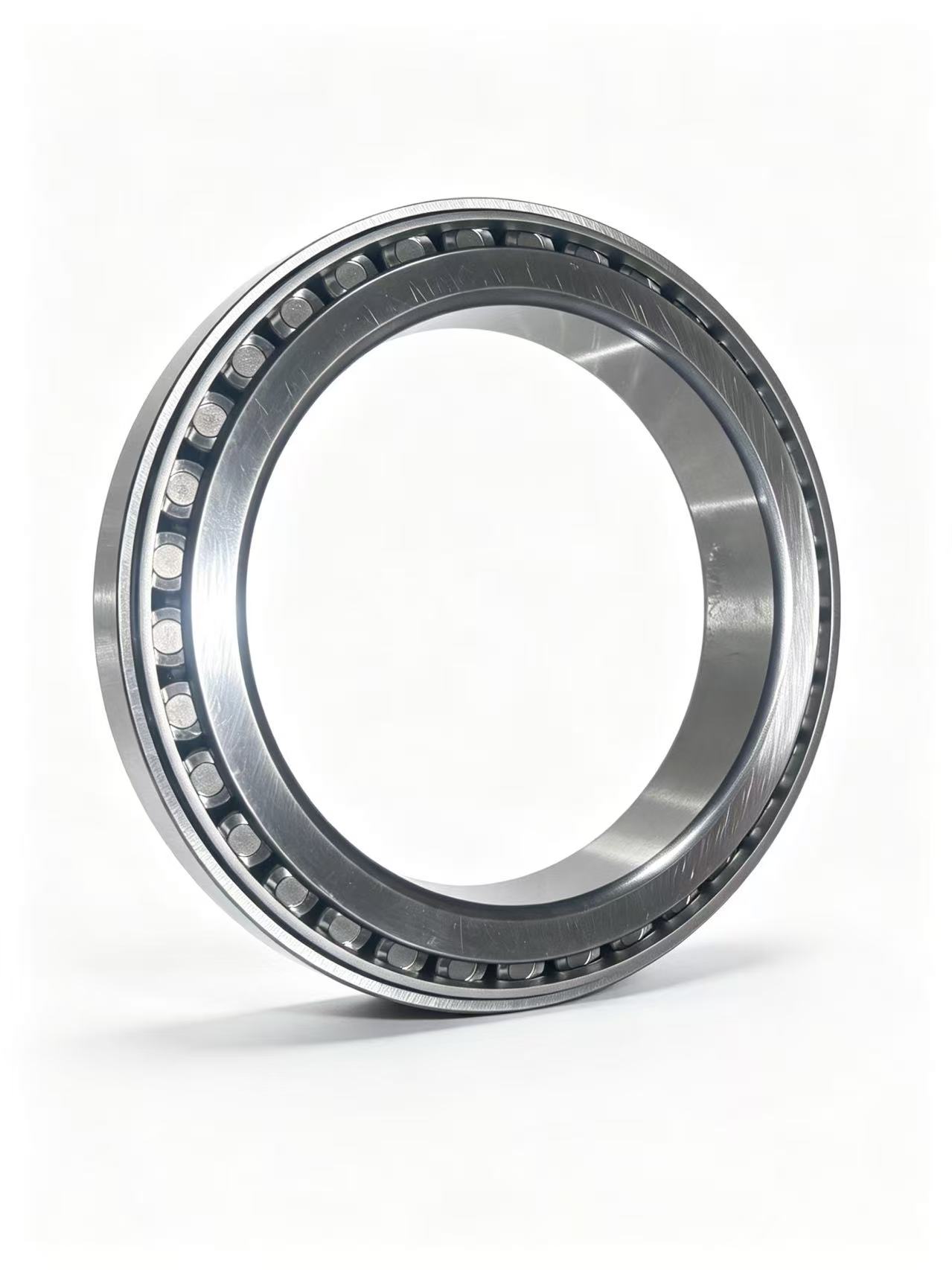

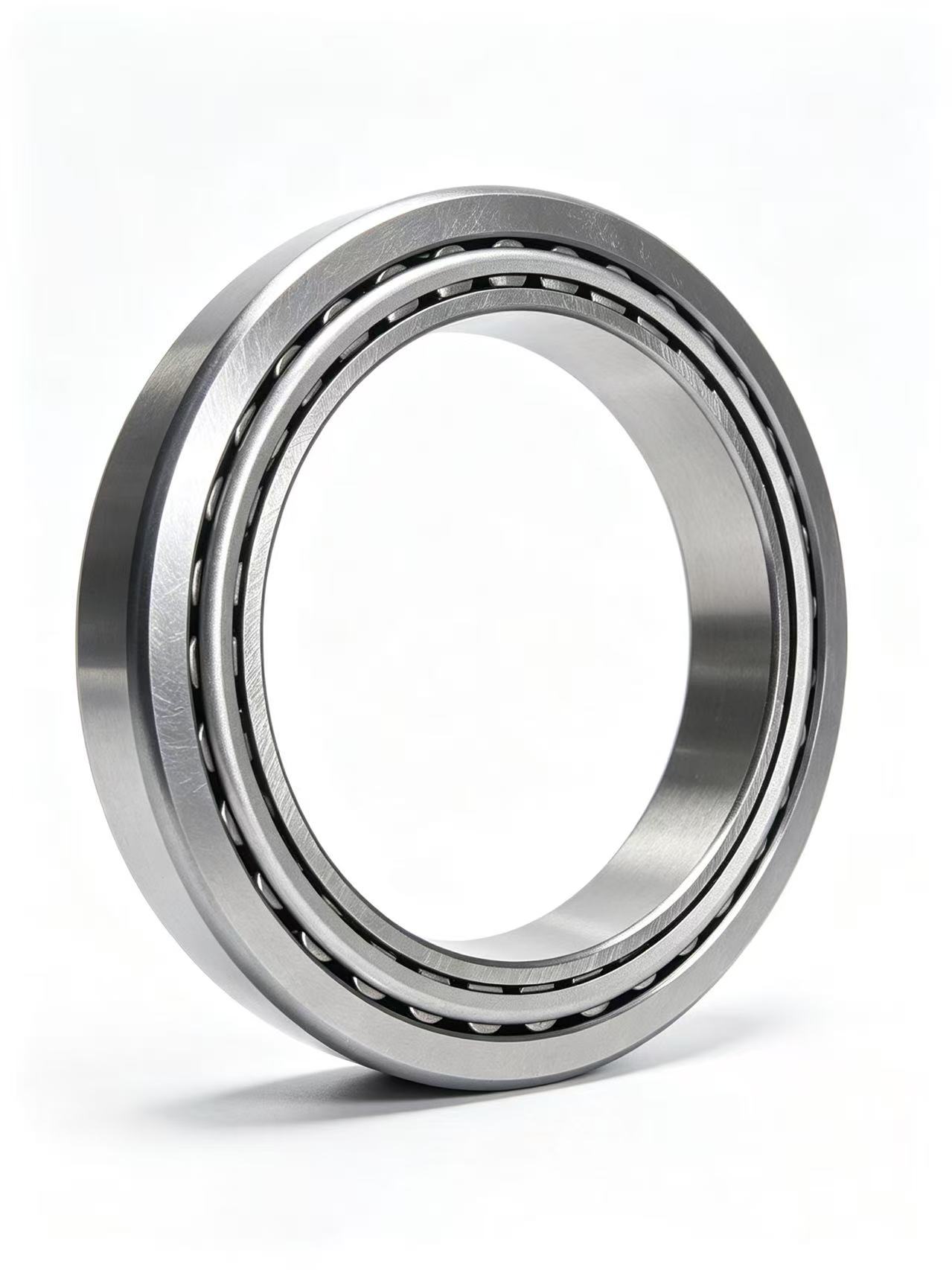

T7FC 075/50CL7C Railway Tapered Roller Bearing

T7FC 075/50CL7C is a tapered roller bearing designation used in demanding bearing applications where controlled radial and axial load carrying capability is required. The supplied technical table lists a 75 mm bore, 150 mm outside diameter and 42 mm total bearing width. For purchasing and replacement work, the complete designation should be confirmed because suffixes and special execution codes can define application, material, lubrication or performance requirements. Boyuan Bearing supplies tapered roller bearings for international distributors, bearing traders and industrial customers.

Technical Specifications

Parameter	Value
Designation	T7FC 075/50CL7C
Bearing type	Tapered Roller Bearing
Bore d	75 mm
Outside diameter D	150 mm
Total width T	42 mm
Inner ring width B	38 mm
Outer ring width C	29 mm
Dynamic load rating C	249 kN
Static load rating C0	280 kN
Limiting speed	4300 r/min
Mass	3.24 kg

Railway and Industrial Applications

The T7FC 075/50CL7C bearing can be considered for railway and heavy-duty bearing applications where a tapered roller bearing is specified. Typical selection factors include shaft and housing dimensions, radial and axial loading, rotational speed, mounting arrangement, lubrication and operating temperature. For railway spare parts, buyers should compare the complete designation and dimensional drawing rather than selecting by bore and outside diameter alone.

Bearing Supply

Boyuan Bearing can quote T7FC 075/50CL7C and related tapered roller bearing models for export orders. Please send the required quantity, complete designation, original/OEM requirement, packaging requirement and destination country when requesting a quotation.
