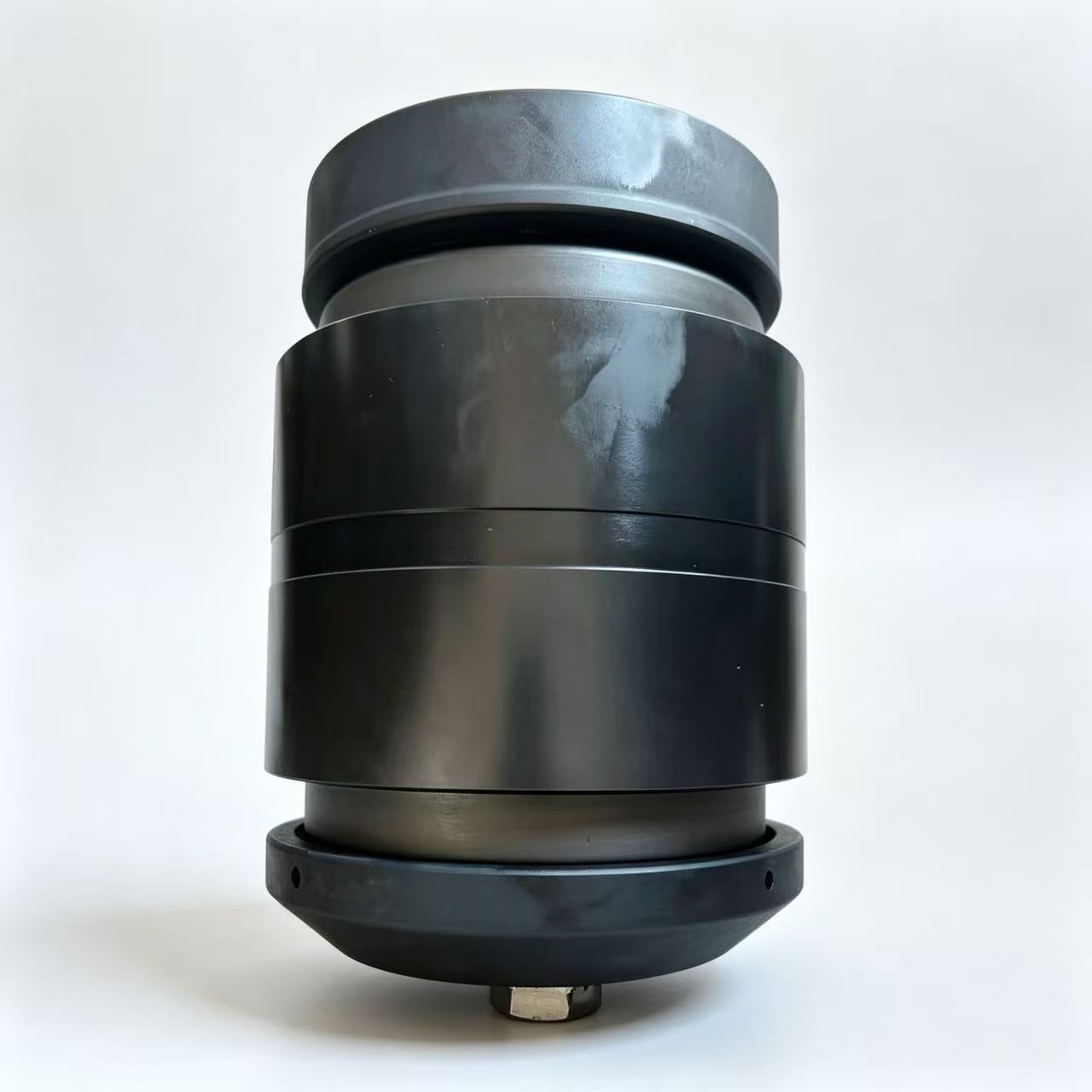

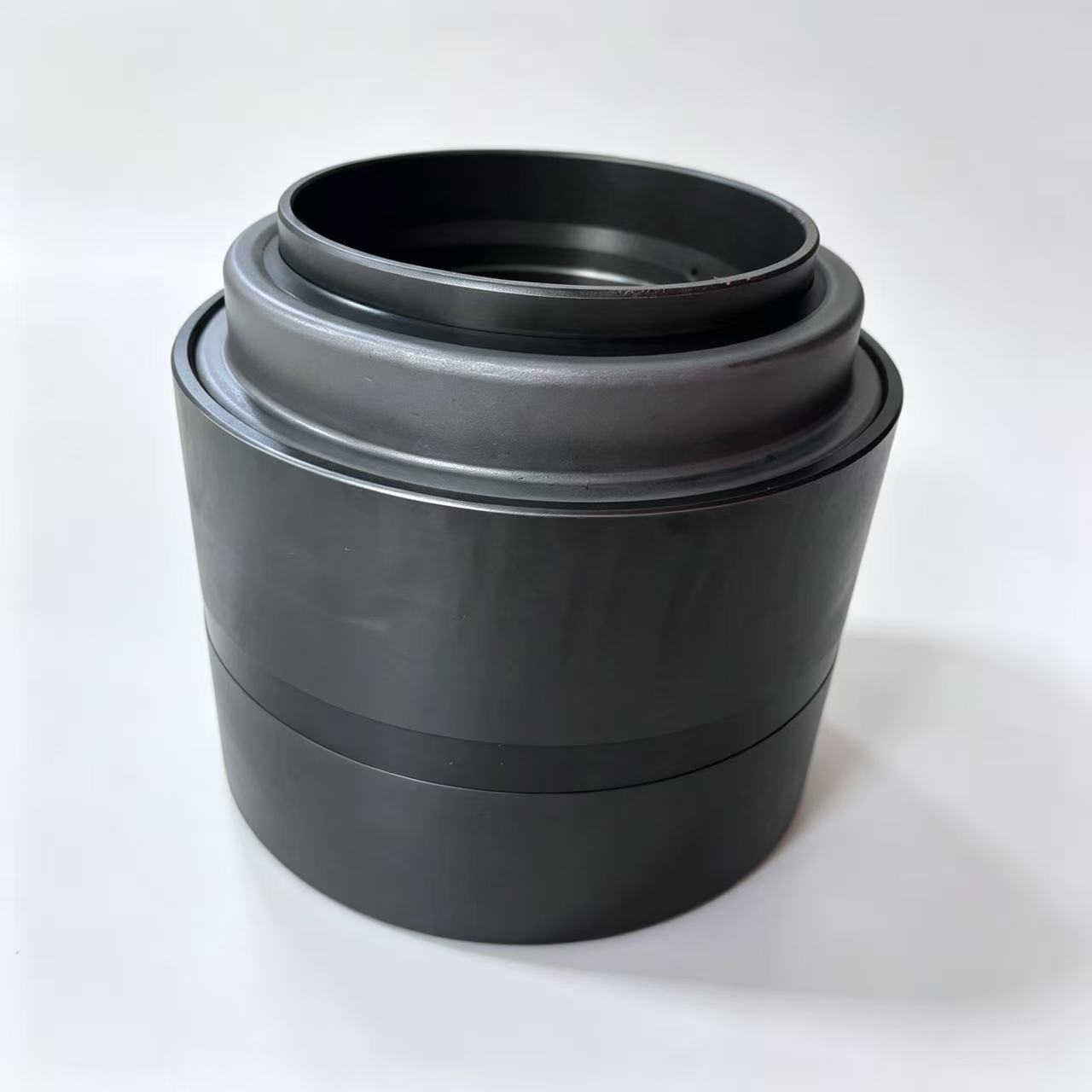

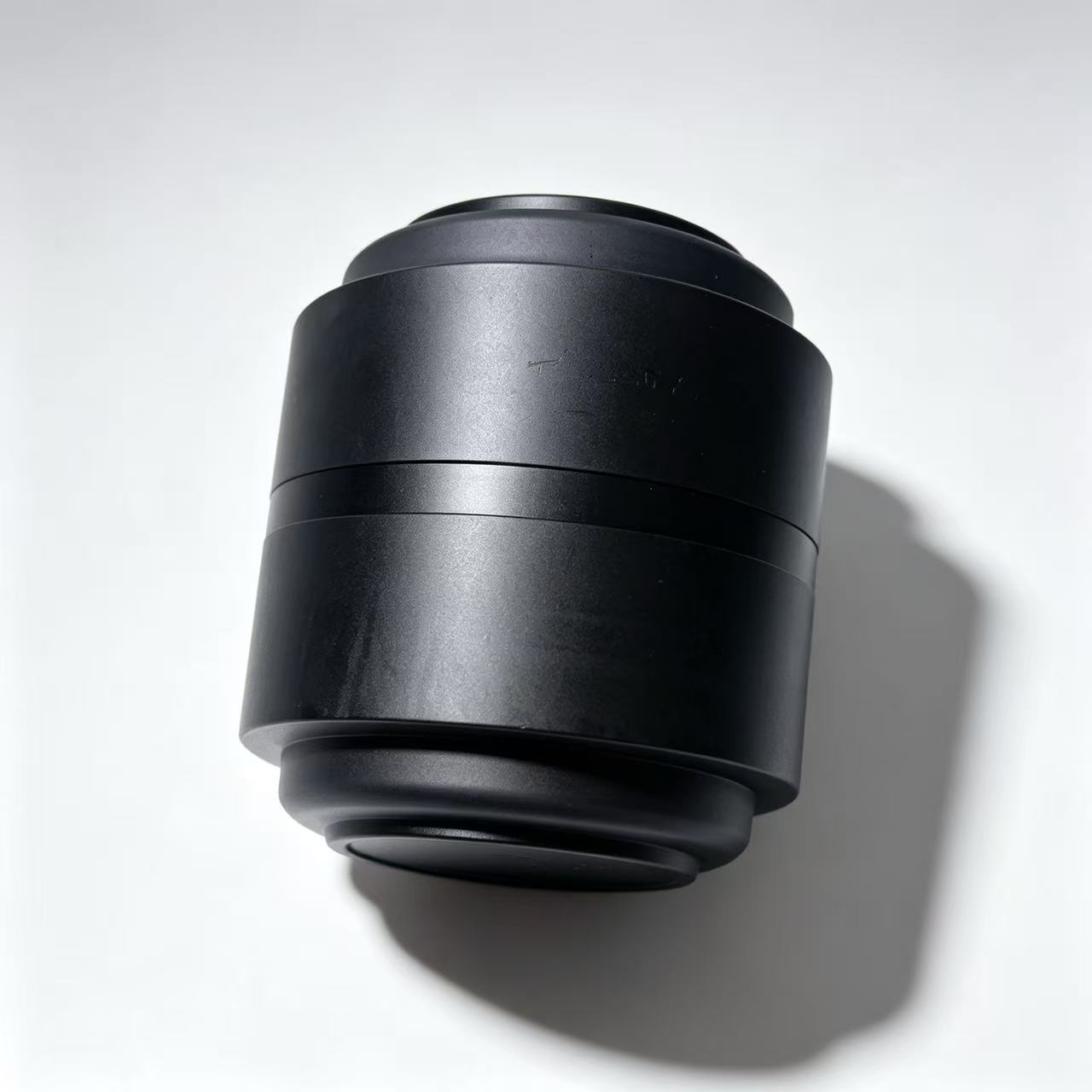

BT2-8516 BB Railway Bearing
BT2-8516 BB Railway Bearing
BT2-8516 BB is a Class E 6×11 railway tapered roller bearing unit for railway axle applications. It is commonly associated with HM129848 / HM129814XD. Reference data lists a bore of approximately 144.45 mm, outside diameter of 220.66 mm and width of approximately 163.51 mm.
Product Overview
BT2-8516 BB is designed for railway applications where bearings must operate under heavy radial and axial loads. The tapered roller configuration provides suitable load support for railway axle and wheelset systems.
Technical Information
| Item | BT2-8516 BB |
|---|---|
| Railway Class | Class E |
| Inch Size | 6×11 inch |
| Bore d | Approx. 144.45 mm |
| Outside Diameter D | Approx. 220.66 mm |
| Width C | Approx. 163.51 mm |
| Related Bearing | HM129848 / HM129814XD |
Railway Applications
The BT2-8516 BB can be used for railway freight car axle systems, wheelsets and related railway equipment. It is also suitable for bearing replacement and maintenance programs.
Supply
Linqing Boyuan Bearing Co., Ltd. provides railway tapered roller bearings for international distributors, traders and industrial customers.
Send us your required quantity and specifications for a BT2-8516 BB railway bearing quotation.
