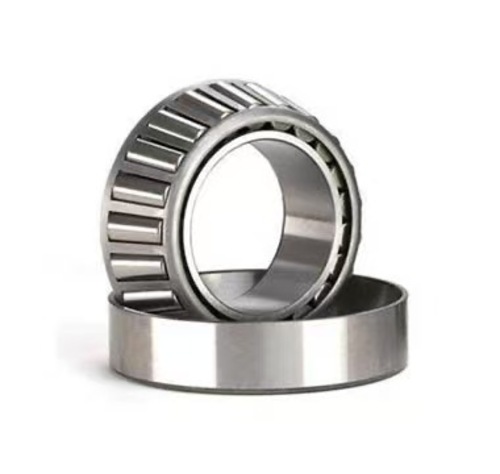

30236 Tapered Roller Bearing
30236 is a large‑size single‑row tapered roller bearing belonging to the metric 302 series. Its split‑design cone and cup assembly can be taken apart fully, which brings great convenience for installation, inspection and preload adjustment during equipment overhaul. This bearing is engineered to handle combined radial loads and single‑direction axial thrust. Produced from high‑strength GCr15 bearing steel, it delivers stable running performance under long‑term heavy‑load operation and sudden impact conditions, widely chosen by heavy‑equipment manufacturers and global spare‑part distributors.
30236 Full Technical Specs
表格
| Parameter | Value |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Model | 30236 |
| Bore d | 180 mm |
| Outer Diameter D | 320 mm |
| Total Width T | 57 mm |
| Inner Ring Width B | 52 mm |
| Outer Ring Width C | 43 mm |
| Approx Weight | 17.9 kg |
Core dimension: 180 × 320 × 57 mm (d × D × T)
Key Product Strengths
Fully separable cone‑cup layout, supports quick disassembly and on‑site clearance calibration
Precision ground raceway and roller surface reduces friction heat and slows down wear progress
Multiple precision grades P0, P6, P5 are selectable for different transmission accuracy requirements
Open‑type structure adapts to high‑viscosity grease lubrication and circulating oil lubrication
Reinforced stamped steel cage keeps rollers well‑aligned under unstable heavy‑load cycles
Real‑World Application Scenarios
30236 tapered roller bearings are commonly used on large heavy‑duty rotating components: mining plant main transmission assemblies, large‑scale industrial gear reducers, heavy construction machinery gearboxes, oversized agricultural processing equipment and heavy‑load conveyor drum groups. For bidirectional axial force working conditions, it is usually deployed in opposed paired installation.
Supply & Custom Options
Boyuan Bearing manufactures and holds stock for 30236 tapered roller bearings. We accept small sample testing orders, mass export orders and OEM custom projects. Special internal clearance and alternative cage styles can be offered as per your actual working‑condition requirements.
Contact Boyuan Bearing for 30236 stock updates, technical datasheets and competitive wholesale quotations.
