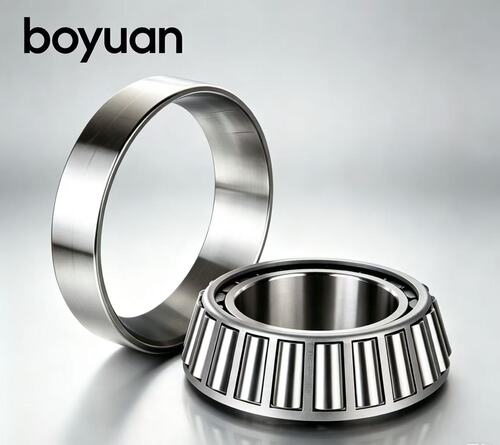

31307 Single Row High‑Angle Tapered Roller Bearing
313 series adopts steep contact angle design, providing much higher axial load capacity than standard 302 and 322 series. 31307 is a medium‑size high‑thrust tapered roller bearing for transmission positions bearing obvious one‑sided axial force. Separable cone‑cup enables easy pre‑load adjustment, disassembly and field maintenance. Made of GCr15 bearing steel, it performs well under combined radial‑axial cyclic loads for OEM assembly and aftermarket spare parts.
表格
| Parameter | Value |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Model | 31307 |
| Bore d | 35 mm |
| Outer Diameter D | 80 mm |
| Total Width T | 22.75 mm |
| Inner Ring Width B | 21 mm |
| Outer Ring Width C | 15 mm |
| Approx Weight | 0.53 kg |
Core dimension: 35 × 80 × 22.75 mmKey benefits: ‑ Extra‑steep taper angle for superior unidirectional axial thrust capacity ‑ Detachable cone‑cup for simple installation, pre‑load setting and overhaul ‑ Precision ground raceway lowers friction heat and prolong service life ‑ P0 / P6 precision grades optional ‑ Supports grease and circulating oil lubrication ‑ Stamped steel cage stable under shock and variable loads
Applications: Medium‑duty gearboxes, agricultural machinery, light construction equipment, general industrial transmission. Opposed paired mounting for bidirectional axial force scenarios.
Boyuan Bearing provides 31307, sample and bulk export orders available. Custom clearance upon working‑condition
