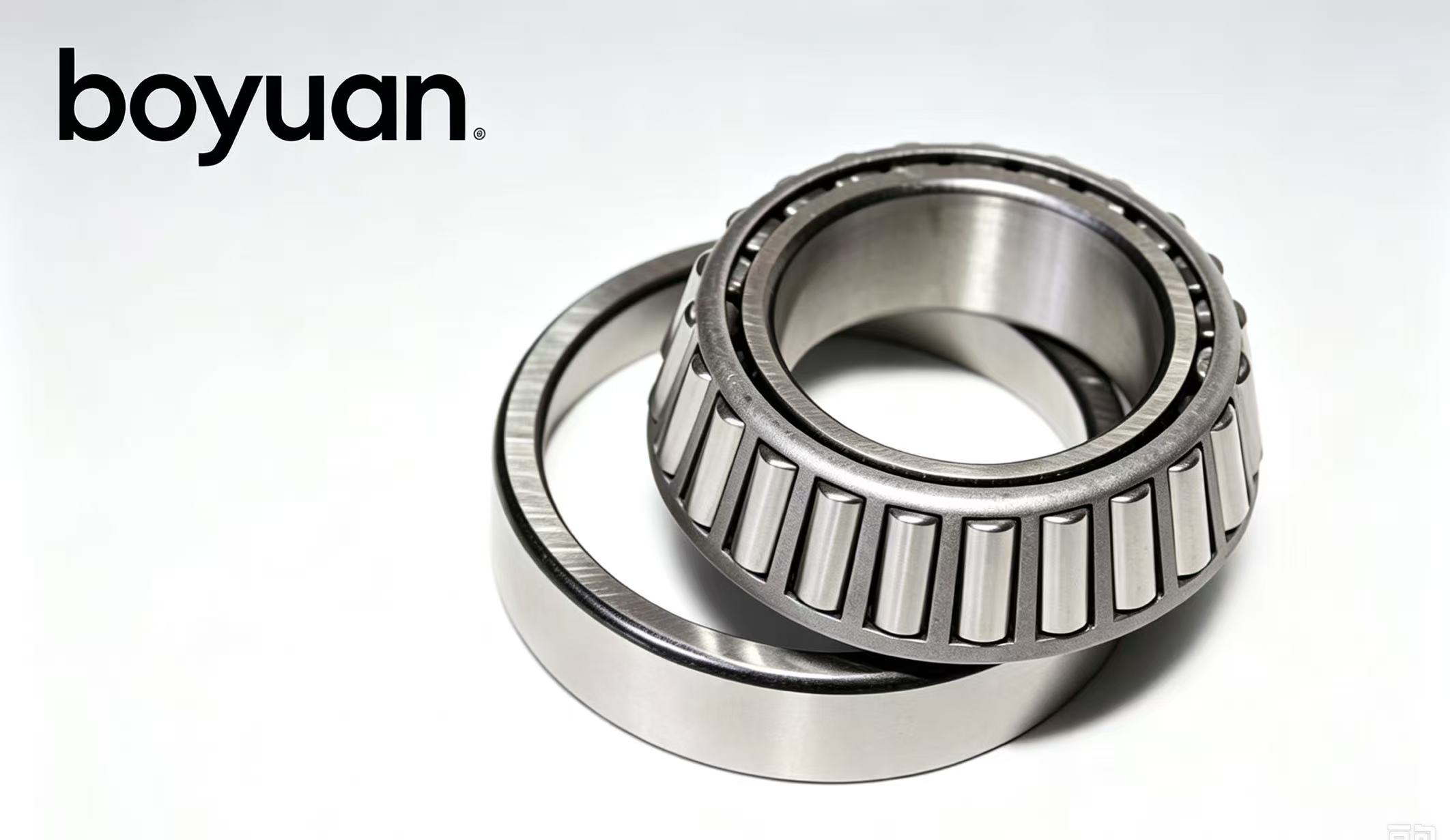

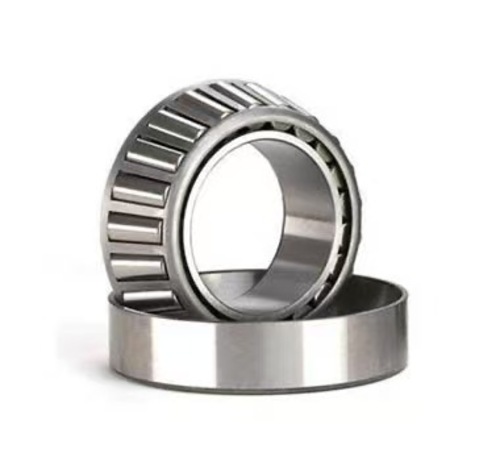

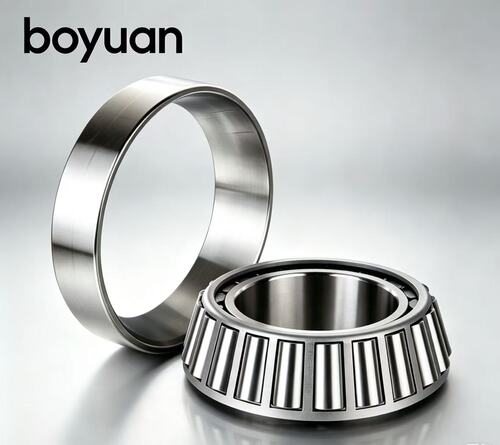

31308 40×90×25.25mm High‑Axial‑Load Taper Roller Bearing | Boyuan Industrial Transmission Bearing
313 series adopts steep contact angle design, providing much higher axial load capacity than standard 302 and 322 series. 31308 is a medium‑size high‑thrust tapered roller bearing for transmission positions bearing obvious one‑sided axial force. Separable cone‑cup enables easy pre‑load adjustment, disassembly and field maintenance. Made of GCr15 bearing steel, it performs well under combined radial‑axial cyclic loads for OEM assembly and aftermarket spare parts.
表格
| Parameter | Value |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Model | 31308 |
| Bore d | 40 mm |
| Outer Diameter D | 90 mm |
| Total Width T | 25.25 mm |
| Inner Ring Width B | 23 mm |
| Outer Ring Width C | 17 mm |
| Approx Weight | 0.76 kg |
Core dimension: 40 × 90 × 25.25 mmKey benefits: ‑ Large taper angle delivers excellent single‑direction thrust performance ‑ Split cone‑cup simplifies fitting and maintenance work ‑ Fine‑finished raceway reduces heat generation ‑ P0/P6 precision optional ‑ Grease & oil lubrication compatible ‑ Reliable steel cage against load fluctuation
Applications: Industrial gearboxes, agricultural equipment, construction machinery transmission units. Use two bearings in opposed arrangement for double‑sided axial thrust.
Boyuan Bearing stocks 31308, accept small sample and container export orders. Reach sales for detailed datasheet and competitive price.
