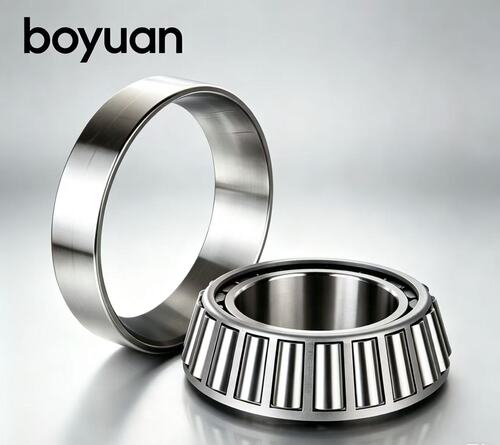

31314 70×150×38mm Heavy‑Thrust Taper Roller Bearing | Boyuan Gear Drive Bearing
31314 high‑angle tapered roller bearing offers outstanding axial load capacity for heavy‑duty transmission assemblies under strong unidirectional axial force. Detachable cone‑cup enables simple pre‑load setting, disassembly and overhaul. Premium GCr15 bearing steel maintains reliable performance under combined radial‑axial cyclic loads for OEM and aftermarket replacement.
表格
| Parameter | Value |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Model | 31314 |
| Bore d | 70 mm |
| Outer Diameter D | 150 mm |
| Total Width T | 38 mm |
| Inner Ring Width B | 35 mm |
| Outer Ring Width C | 25 mm |
| Approx Weight | 3.22 kg |
Core dimension: 70 × 150 × 38 mmKey benefits: ‑ Steep angle for superior unidirectional axial thrust performance ‑ Split cone‑cup shortens installation and maintenance time ‑ Precision ground raceway extends service life ‑ P0 / P6 precision optional ‑ Grease and circulating‑oil lubrication supported ‑ Reinforced steel cage resists heavy shock loads
Applications: Heavy gearboxes, construction machinery, agricultural equipment, heavy industrial transmission. Use opposed‑paired mounting for bidirectional axial‑force conditions.
Boyuan Bearing supplies 31314, support sample and container export. Inquire sales for datasheet and bulk‑order price.
