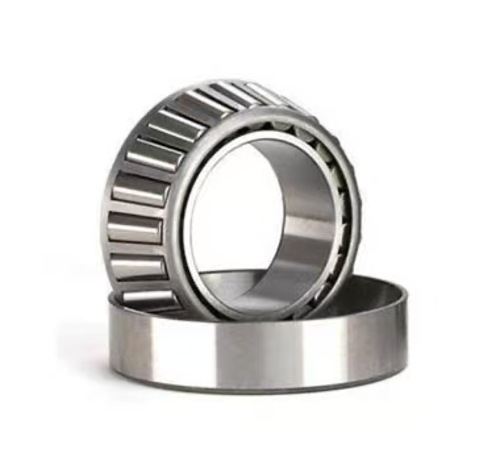

31324 120×260×59.5mm High‑Axial‑Load Taper Roller Bearing | Boyuan Mining Transmission Bearing
31324 high‑angle tapered roller bearing is engineered for heavy‑load positions subjected to remarkable unidirectional axial force. Separable cone‑cup structure supports flexible pre‑load tuning and easy on‑site maintenance. High‑quality GCr15 bearing steel maintains reliable performance under mixed radial‑axial cyclic loads, suitable for original equipment matching and global spare‑part market.
表格
| Parameter | Value |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Model | 31324 |
| Bore d | 120 mm |
| Outer Diameter D | 260 mm |
| Total Width T | 59.5 mm |
| Inner Ring Width B | 55 mm |
| Outer Ring Width C | 38 mm |
| Approx Weight | 14.2 kg |
Core dimension: 120 × 260 × 59.5 mmKey benefits: ‑ Large taper angle achieves high unidirectional axial load rating ‑ Detachable cone‑cup shortens assembly and overhaul time ‑ Precision ground raceway lowers operating temperature and abrasion ‑ P0 / P6 precision grades selectable ‑ Works well with grease and oil lubrication systems ‑ Reinforced steel cage stable under severe impact conditions
Applications: Heavy‑duty gear units, mining machinery, construction equipment, heavy‑industry drive shafts. Opposed paired mounting required for bidirectional axial force.
Boyuan Bearing stocks 31324, accept small‑batch sample and container‑level export orders. Reach sales for full datasheet and bulk‑order price.
