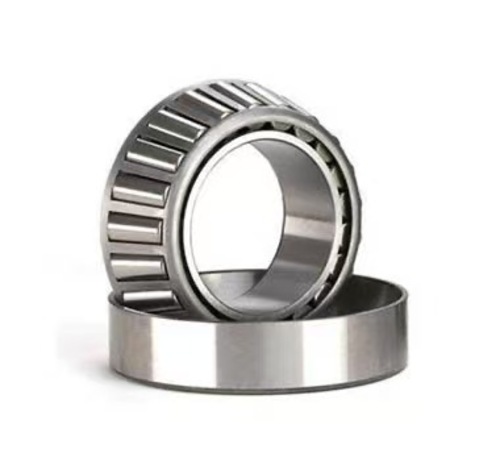

31330 150×320×72mm Heavy‑Thrust Taper Roller Bearing | Boyuan Mining & Heavy Machinery Bearing
31330 high‑angle tapered roller bearing belongs to large‑bore 313 series, designed for extreme heavy‑duty transmission positions with strong unidirectional axial thrust. Separable cone‑cup structure facilitates pre‑load setting, disassembly and maintenance work. High‑grade GCr15 bearing steel maintains stable performance under severe combined radial‑axial cyclic loads for OEM and global aftermarket spare‑part replacement.
表格
| Parameter | Value |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Model | 31330 |
| Bore d | 150 mm |
| Outer Diameter D | 320 mm |
| Total Width T | 72 mm |
| Inner Ring Width B | 65 mm |
| Outer Ring Width C | 47 mm |
| Approx Weight | 24.7 kg |
Core dimension: 150 × 320 × 72 mmKey benefits: ‑ Extra‑large taper angle for superior unidirectional axial thrust performance ‑ Fully detachable cone‑cup shortens assembly and maintenance cycles ‑ Precision ground raceway reduces friction and temperature rise ‑ P0 / P6 precision grades selectable ‑ Compatible with grease and circulating‑oil lubrication ‑ Reinforced heavy‑duty steel cage resists harsh shock loads
Applications: Super heavy‑duty gearboxes, mining machinery, large construction equipment, heavy‑industry main drive shafts. Adopt opposed paired mounting under bidirectional axial‑force working conditions.
Boyuan Bearing stocks 31330, accept small‑batch sample and full container export orders. Reach sales for stock check, complete datasheet and competitive quotation.
