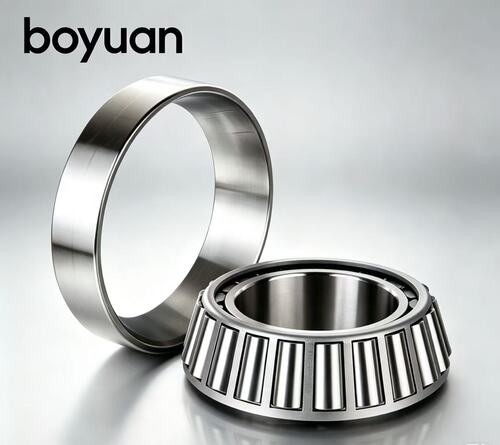

32324 120×260×90.5mm Taper Roller Bearing | Harsh‑Site Heavy‑Duty Bearing
Open‑air mining and construction sites feature dust pollution, continuous vibration and complex mixed loads, which accelerate ordinary bearing wear. 32324 high‑thrust tapered roller bearing is developed for such severe‑site environments. Its steep‑angled roller structure raises axial‑force rating while maintaining good radial‑load tolerance. Separable cone‑cup structure facilitates pre‑load fine‑tuning and component replacement during periodic overhaul. High‑purity GCr15 steel keeps stable performance under long‑term mixed‑load operation.
表格
| Parameter | Value |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Model | 32324 |
| Bore d | 120 mm |
| Outer Diameter D | 260 mm |
| Total Width T | 90.5 mm |
| Inner Ring Width B | 86 mm |
| Outer Ring Width C | 69 mm |
| Approx Weight | 16.5 kg |
Core dimension: 120 × 260 × 90.5 mmKey benefits: ‑ Optimized for harsh‑site heavy mixed‑load working ‑ Detachable cone‑cup for convenient periodic maintenance ‑ Super‑finished raceway suppress temperature rise ‑ P0/P6/P5 precision optional ‑ Reinforced steel cage adapts to vibration‑intensive environment
Applications: Heavy‑truck wheel‑end hubs, large industrial reducers, mining transmission modules, heavy off‑highway machinery gearboxes. Opposed‑mount two bearings for bidirectional thrust.
Boyuan Bearing stocks 32324. Contact sales for datasheet and export‑order price.
