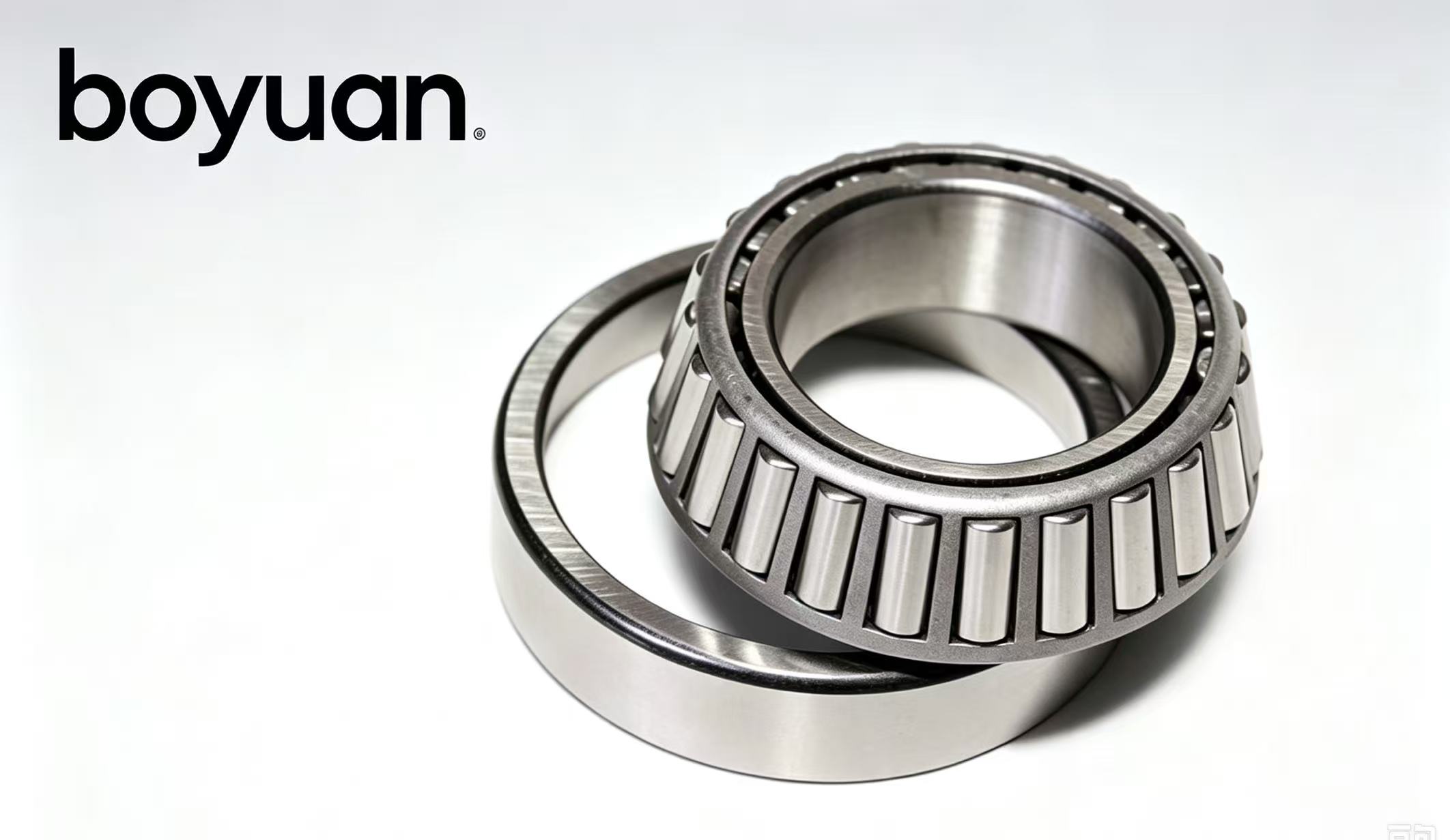

32326 130×280×98.75mm Large‑Size Tapered Roller Bearing | High‑Power Transmission Bearing
High‑power heavy‑machinery transmission systems produce large‑magnitude one‑way axial thrust from gear meshing. 32326 large‑size tapered roller bearing is designed for these high‑power transmission scenarios. Enlarged taper contact angle brings prominent axial‑load‑carrying capacity, while retaining reliable radial‑load performance. Cone‑cup split‑type design allows separate handling of inner‑outer components, convenient for pre‑load adjustment and routine overhaul. Refined GCr15 chrome steel resists fatigue failure caused by heavy combined loads.
表格
| Parameter | Value |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Model | 32326 |
| Bore d | 130 mm |
| Outer Diameter D | 280 mm |
| Total Width T | 98.75 mm |
| Inner Ring Width B | 92 mm |
| Outer Ring Width C | 74 mm |
| Approx Weight | 20.0 kg |
Core dimension: 130 × 280 × 98.75 mmKey benefits: ‑ Large‑angle geometry for high‑power heavy‑thrust transmission ‑ Fully detachable cone‑cup simplifies assembly & overhaul ‑ Precision‑ground raceway slows wear‑related degradation ‑ Multiple precision grades for heavy‑equipment matching ‑ Heavy stamped steel cage for large‑amplitude shock‑load
Applications: Heavy‑truck wheel‑end hubs, oversized industrial gear reducers, mining‑plant main‑shaft groups, heavy off‑road machinery gear assemblies. Adopt opposed‑pair mounting for bidirectional axial‑thrust.
Boyuan Bearing manufactures 32326, support sample trial and bulk export.
