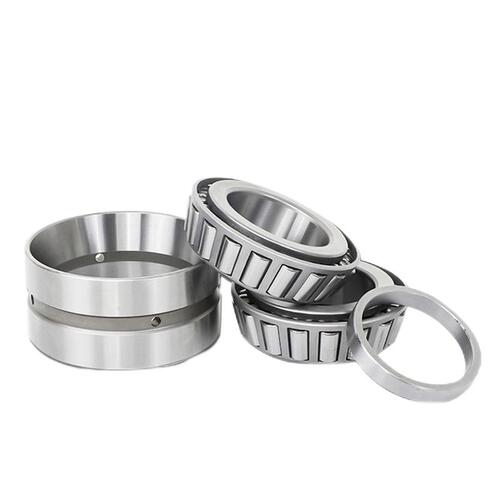

352013 65x100x52 Double‑Row Taper Roller Bearing Compact Double Taper Bearing For Drive Shaft
352013 features slim total width while realizing 65 mm inner bore size. Back‑to‑back double‑row roller layout can stabilize drive shaft under composite force. It is delivered as an integrated unit with factory‑adjusted clearance, greatly simplifying installation procedure. Made of GCr15 steel to resist wear under medium‑shock industrial environment.
表格
| Parameter | Value |
|---|---|
| Bearing Type | Double‑Row Tapered Roller Bearing |
| Model | 352013 |
| Bore d | 65 mm |
| Outer Diameter D | 100 mm |
| T | 52 mm |
Core dimension: 65 × 100 × 52 mmKey benefits: ‑ Slim‑width design for narrow housing cavity ‑ Reliable stabilization for intermediate‑size drive shaft ‑ Complete pre‑adjusted unit for easy assembly ‑ Wear‑resistant for medium‑shock working environment ‑ P0 / P6 precision selectable ‑ Grease lubrication is recommended
Applications: Equipment drive shafts, compact‑structure gearboxes, logistics conveying machinery, light‑duty mining auxiliary devices.
Boyuan Bearing supplies 352013 bearing, support sample testing and mass production order. Send inquiry for detailed specification.
