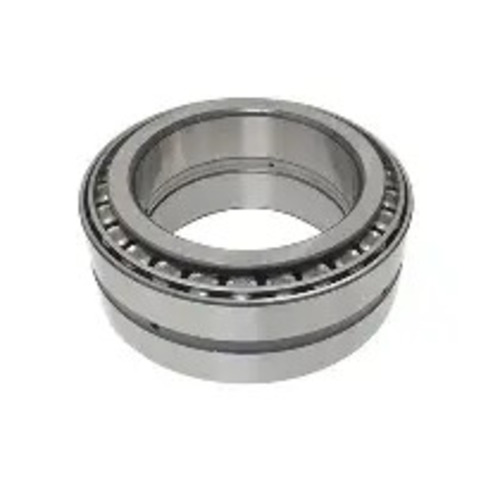

352224 120×215×100mm Double Row Tapered Roller Bearing | Boyuan Large‑Size Heavy‑Load Bearing
352224 double‑row tapered roller bearing is over‑size heavy‑duty double‑row tapered roller bearing. Back‑to‑back double‑row rollers structure bear heavy radial load and bidirectional axial thrust at the same time. Factory pre‑adjusted clearance, supplied as complete whole bearing, suitable for heavy‑industry severe working conditions.
表格
| Parameter | Value |
|---|---|
| Bearing Type | Double‑Row Tapered Roller Bearing |
| Model | 352224 |
| Bore d | 120 mm |
| Outer Diameter D | 215 mm |
| Overall Width T | 100 mm |
| Approx Weight | 14.80 kg |
Core dimension: 120 × 215 × 100 mmKey benefits: ‑ Outstanding capacity for huge radial plus bidirectional axial combined loads ‑ Extra‑high rigidity, effectively restrain shaft deflection under heavy impact ‑ Factory pre‑calibrated clearance, direct mounting without shimming ‑ Heavy‑duty solid machined steel cage resists heavy shock loads ‑ P0 / P6 precision grades optional ‑ Compatible with grease and circulating‑oil lubrication
Applications: Super‑heavy vehicle axles, large‑scale heavy‑duty speed reducers, mining large equipment, heavy construction machinery main drive shafts.
Boyuan Bearing supplies 352224, sample and bulk‑volume export available. Contact sales for datasheet and competitive quotation.
